1/2 IN ALUM L-T CRD&CBL CONN

Appleton Electric
1/2 IN ALUM L-T CRD&CBL CONN

Part Number: CG90-2550
UPC: 00781381131711
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Conductor Range...
Changes Selections Above Color...
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

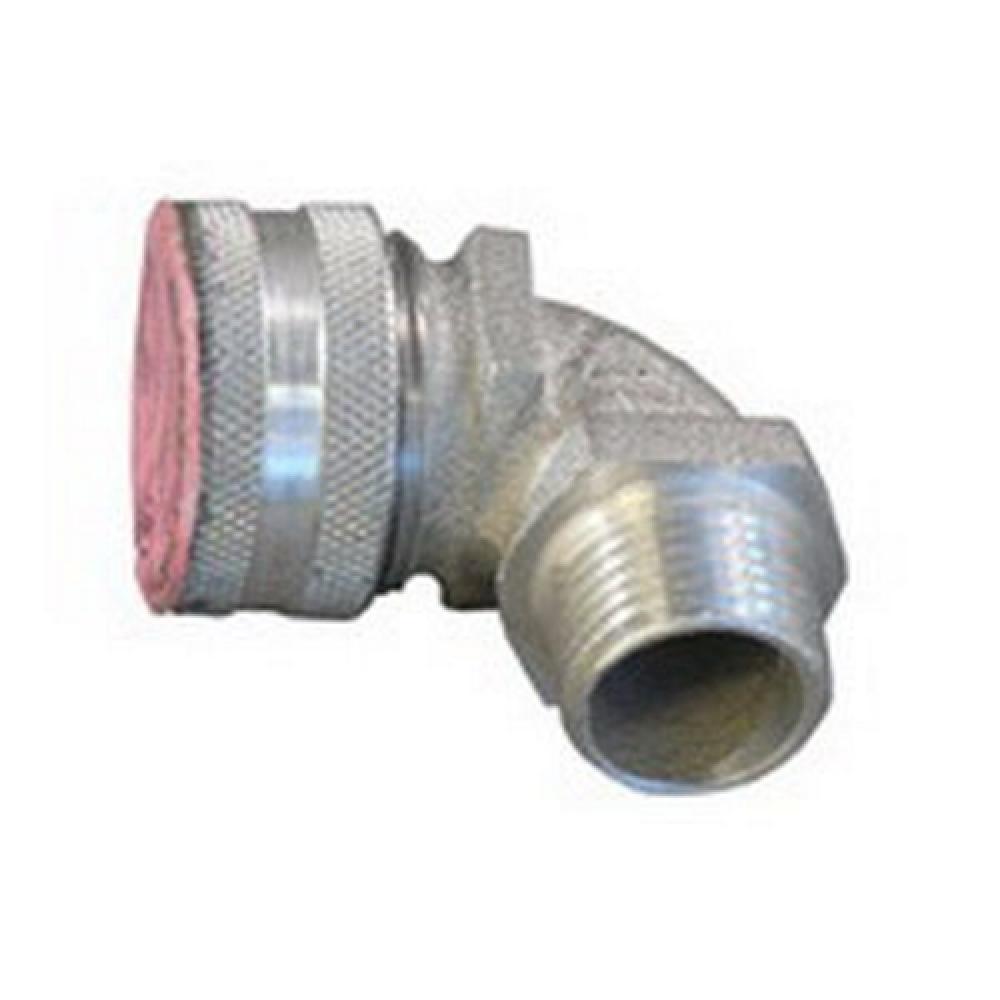

90 DEG Liquidtight Strain Relief Connector, Size: 1/2 IN, Conductor Range: 1/4 - 3/8 IN, Material: Cast Aluminum, Color: Green Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Division 1 An
Specifications
Details
Product Height:
0.14"
Product Width:
5.20"
Product Length:
7.20"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
Brand Name:
Appleton
Color:
Green Label
Conductor Range:
1/4 - 3/8
Connection:
Threaded Hub
Country Of Origin:
MX
Material:
Cast Aluminum
NEMA Rating:
NEMA 3R
Order Minimum:
25.000 EA
Order Multiple:
25.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1/2
Spec Sheet:
Spec Link
Special Features:
For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which
Standard:
Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
Stock Type:
Shelf Stock
Type:
90 DEG Liquidtight Strain Relief Connector
UNSPSC:
39121431
Warranty Link:
Warranty Information
Weight:
.100 L
