7693-S-4-INV-3G QT-III 3C TERM KIT

3M Electrical Products
7693-S-4-INV-3G QT-III 3C TERM KIT

Part Number: 7693-S-4-INV-3G
UPC: 00054007436775
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Lead Time...
Changes Selections Above Length...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

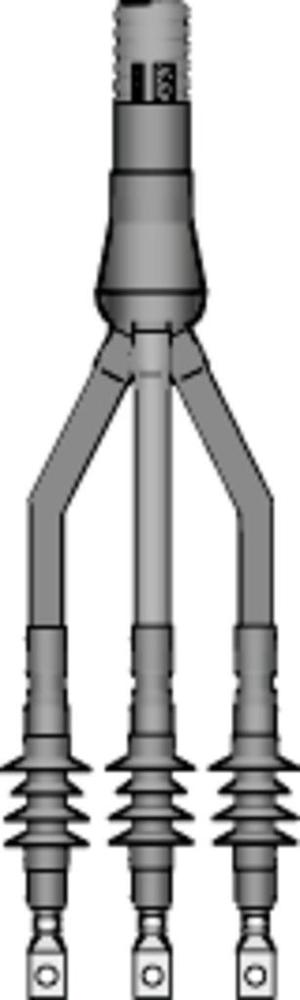

3M™ Cold Shrink QT III 7620 S & 7690 S Series Inverted Termination Kit includes 3 single conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
Specifications
Details
Product Height:
10.70"
Product Width:
16.63"
Electrical Category:
Wire And Cable
Electrical Subcategory:
Cable Accessories
Electrical Subtype:
High Voltage Cable Termination Kit
Application:
Outdoor
Brand Name:
3M
Brochure:
Manufacturer Brochure
Cable Type:
Tape Shield; UniShield(R); Wire Shield
Conductor Size:
1 AWG; 1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
Country Of Origin:
USA
Installation Link:
Installation Instructions
Lead Time:
21.000 DA
Length:
16.9600 IN
MsdsURL:
http://images.salsify.com/image/upload/s--frTXOIxl--/wbrwi053x1kecbnonsfv.pdf
Number Of Terminals:
3
Order Minimum:
1.000 KT
Order Multiple:
1.000 KT
RoHS Compliance:
Under Review
Spec Sheet:
Spec Link
Standard:
IEEE
Type:
QT-III
UNSPSC:
26121648
Voltage Rating:
15 kV; 25/28 kV; 5 kV; 8 kV
Weight:
12.600 L
