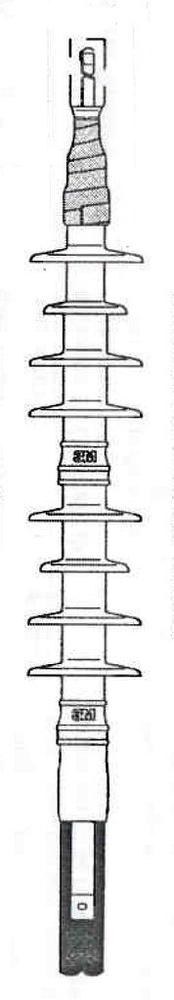

5696K 35 KV COLD SHRINK TERM #2 -3/0

3M Electrical Products
5696K 35 KV COLD SHRINK TERM #2 -3/0

Part Number: 5696K
UPC: 00054007493990
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
3M™ Cold Shrink QT II 5690K Series Termination Kit includes three 6 skirt, 1 piece terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
Specifications
Details
Product Height:
8.50"
Product Width:
8.10"
Electrical Category:
Wire And Cable
Electrical Subcategory:
Cable Accessories
Electrical Subtype:
High Voltage Cable Termination Kit
Application:
Outdoor
Brand Name:
3M
Cable Type:
Tape Shield; UniShield(R); Wire Shield
Conductor Size:
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil
Country Of Origin:
USA
Installation Link:
Installation Instructions
Lead Time:
14.000 DA
Length:
23.1000 IN
MsdsURL:
http://images.salsify.com/image/upload/s--LeuwtP7G--/yvkaowkckspzbyvi2vtb.pdf
Number Of Terminals:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Under Review
Spec Sheet:
Spec Link
Standard:
IEEE
Tech Drawing Link:
Tech Drawing
Type:
QT-II
UNSPSC:
26121648
Voltage Rating:
15 kV; 25/28 kV; 35 kV
Weight:
4.700 L
