TPI

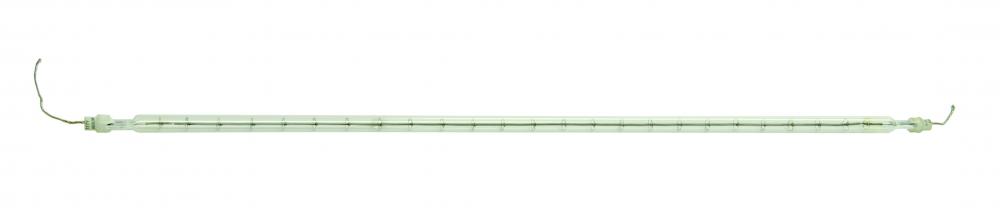

3800W Infrared Element 600V
Part Number: 63038579
UPC: 00686334446235
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Quartz Lamp, Fostoria, Size- 3/8 IN, 600 V, Frequency Rating- 50/60 HZ, 3800 WTT, Style- Coiled Element with Sealed Porcelain End Caps, Insert Length- 41-11/16 IN, Housing Quartz, Horizontal Burning "Clear". For Use With 462/463 Series Mul-T-Mount Electric Infrared Heater, MM-46A Mitey Midget Electric Infrared Heater
Specifications
Details
Product Height:
3.00"
Product Width:
3.00"
Product Length:
56.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Heating Equipment Parts And Accessories
Application:
Indoor/Outdoor-Commercial/Industrial
Brand Name:
TPI
Country Of Origin:
US
Frequency Rating:
50/60 HZ
Housing Material:
Quartz
Insert Length:
41-11/16 IN
Model:
630-38579
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
3/8 IN
Spec Sheet:
Special Features:
Features: Excellent Resistance to Thermal Shock; For Use With: 462/463 Series Mul-T-Mount Electric Infrared Heater;MM-46A Mitey Midget Electric Infrared Heater; Color: Clear; Color Temperature: 4100 DEG F; Life: 5000 HR; Element Material: Tungsten
Stock Type:
Shelf Stock
Style:
Coiled Element with Sealed Porcelain End Caps
Sub Brand:
Fostoria
UNSPSC:
40101830
Voltage Rating:
600 V
Warranty Link:
Wattage:
3800 WTT
Weight:
3.000 L
