30" Ind Asmbld SD Fan - Ylw

TPI
30" Ind Asmbld SD Fan - Ylw

Part Number: HDH30JR
UPC: 00686334874465
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

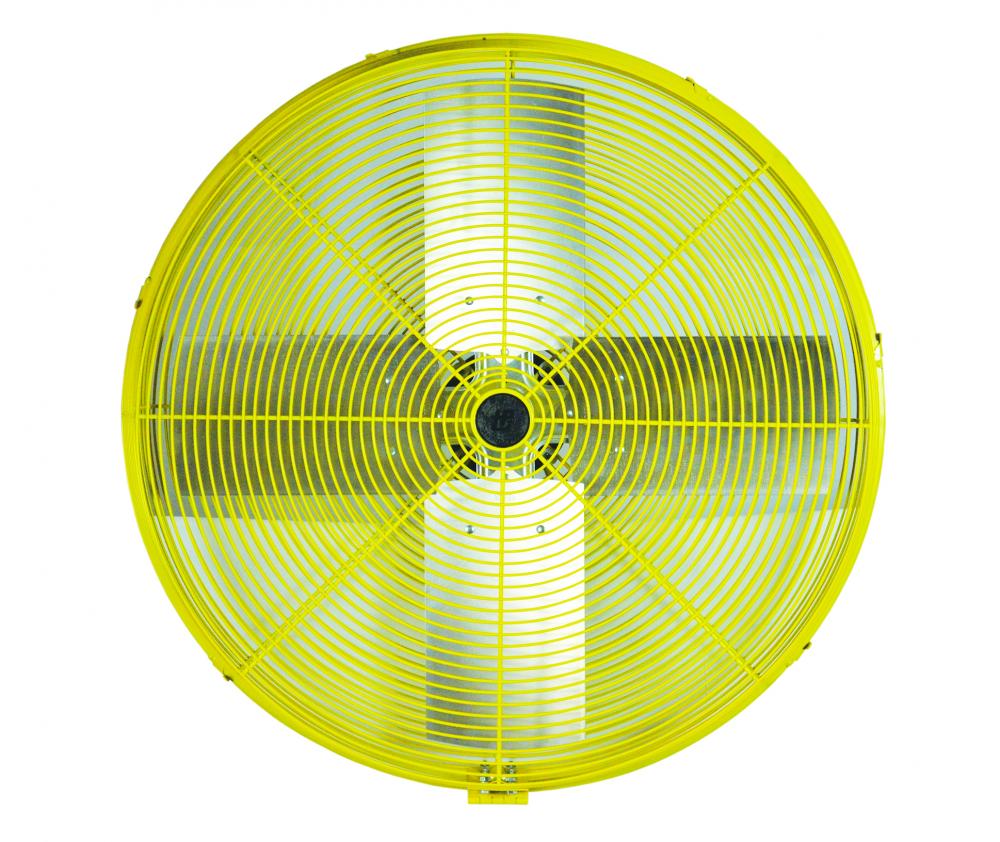

Industrial Assembled Circulator Heads and Mount, Assembled Maximum Duty, Size- 33.5 IN, Blade Size- 30 IN, CFM 6800 (High) 6000 (Low) , 1/2 HP, 4 AMP, Speed- 800 (Low), 1100 (High) RPM, 120 V, 2 Speeds, Yellow
Specifications
Details
Product Height:
15.00"
Product Width:
33.00"
Product Length:
33.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Amperage Rating:
4
Application:
Indoor-Industrial
Blade Size:
30
Brand Name:
TPI
Country Of Origin:
US
Drive Type:
Motor
Flow Rate:
6000 (Low); 6800(High)
Horsepower:
1/2
Housing Material:
Steel
Maximum Depth:
14.5
Mounting:
Ceiling/I-Beam/Wall/Pedestal
Number Of Speeds:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
No
Shaft Diameter:
1/2
Size:
33.5 IN
Spec Sheet:
Spec Link
Special Features:
Features: Easy Access Hinged Guard; 18 IN Drop Down; 2-Speed Switch; Steel Hub/Spider Aluminum Paddle Blades; Powder Coated Steel Guards; 5 Year Warranty; Permanent Split Capacitor; Totally Enclosed; Permanently Lubricated; Blade Material: Aluminum; Color
Speed:
800 (Low); 1100 (High)
Standard:
cETLus Listed; OSHA
Stock Type:
Shelf Stock
Style:
Paddle Blade
Type:
Assembled Maximum Duty
UNSPSC:
40101602
Voltage Rating:
120
Warranty Link:
Warranty Information
Weight:
45.000 L
