24" Unsmbld High Perf Fan w/Wall, 1/3 HP

TPI

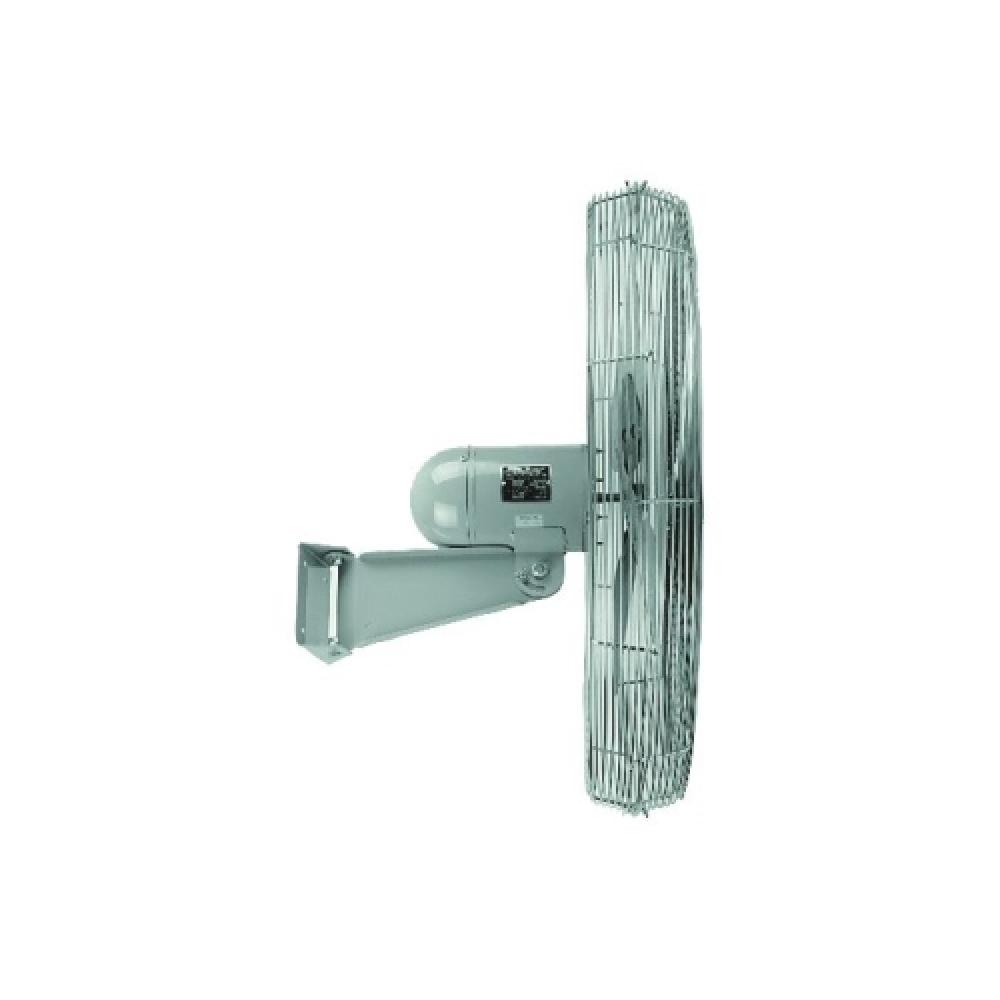

24" Unsmbld High Perf Fan w/Wall, 1/3 HP

Part Number: UHP24W
UPC: 00686334799027
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
24 IN Industrial Unassembled Circulator, Unassembled High Performance, 1/3 HP, Size- 27 IN, Flow Rate- 5200 (Low), 7000 (High) CFM, 2.8 AMP, Speed- 800 (Low), 1100 (High) RPM, 120 V, 2 Speeds, Wall Mounting
Specifications
Details
Product Height:
9.00"
Product Width:
35.00"
Product Length:
43.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Amperage Rating:
2.8 AMP
Application:
Indoor-Industrial
Blade Size:
24 IN
Brand Name:
TPI
Country Of Origin:
US
Drive Type:
Motor
Flow Rate:
5200 (Low);7000 (High) CFM
Horsepower:
1/3 HP
Housing Material:
Steel
Maximum Depth:
14.5 IN
Mounting:
Wall
Number Of Speeds:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 PH
RoHS Compliance:
No
Shaft Diameter:
1/2 IN
Size:
27 IN
Spec Sheet:
Spec Link
Special Features:
Features: Pull Chain Switch;Steel Hub/Spider Aluminum Paddle Blades;Coated Steel Guards;Totally Enclosed;Permanent Split Capacitor;Permanently Lubricated; Blade Material: Aluminum; Color: Gray; Cord Type: 3 Conductor SJT; Cord Length: 12 FT
Speed:
800 (Low);1100 (High) RPM
Standard:
cETLus Listed;OSHA
Stock Type:
Shelf Stock
Style:
Paddle Blade
Type:
Unassembled High Performance
UNSPSC:
40101602
Voltage Rating:
120 V
Warranty Link:
Warranty Information
Weight:
46.000 L
