TPI

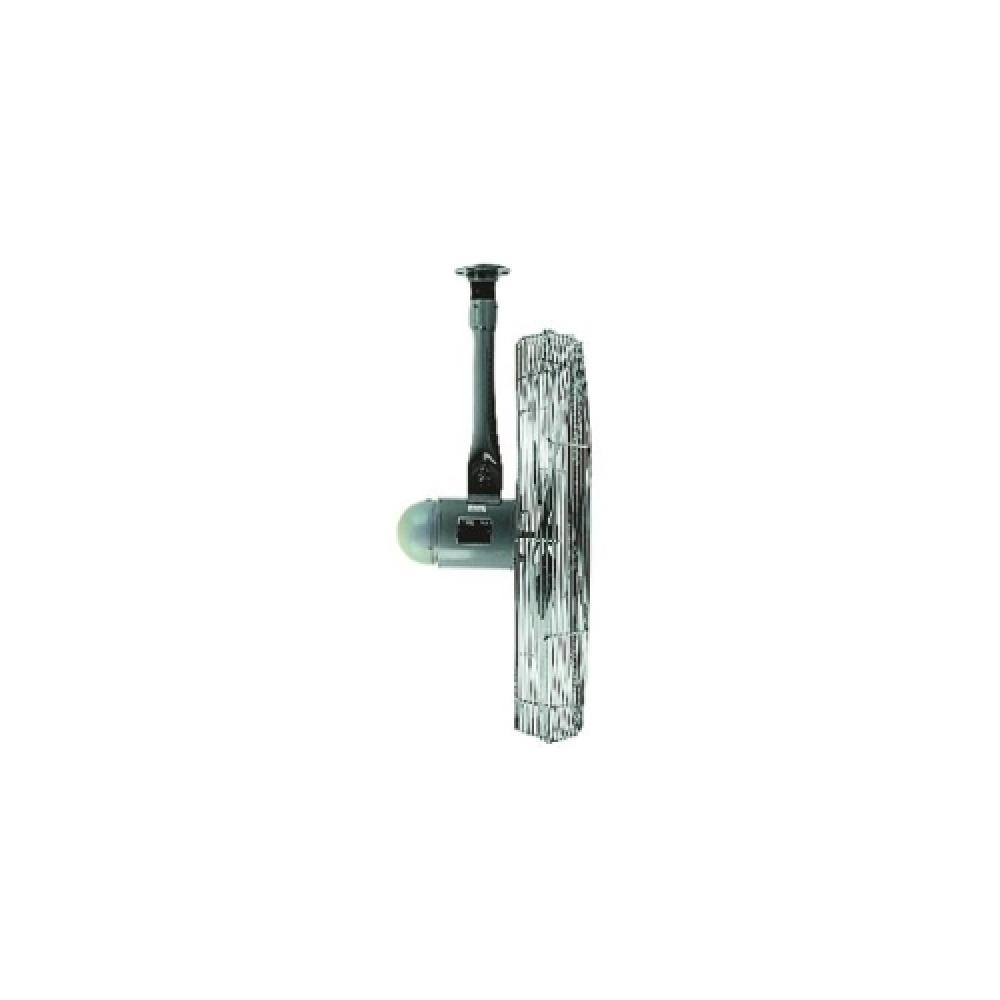

24" 13 HP Ceiling Mount Super Duty Fan
Part Number: UHP24CJR
UPC: 00686334874588
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
High Performance Unassembled Maximum Duty Circulator, 1/3 HP, Size- 27 IN, Blade Size- 24 IN, Flow Rate- 5200 (Low), 7000 (High) CFM, 2.8 AMP, 2 Speed - 800 (Low), 1100 (High) RPM, 120 V
Specifications
Details
Product Height:
9.00"
Product Width:
34.00"
Product Length:
44.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Number of Blades:
3 Blades
Amperage Rating:
2.8 AMP
Application:
Indoor-Industrial
Blade Size:
24 IN
Brand Name:
TPI
Country Of Origin:
US
Drive Type:
Motor
Flow Rate:
5200 (Low);7000 (High) CFM
Horsepower:
1/3 HP
Housing Material:
Steel
Maximum Depth:
14.5 IN
Mounting:
Ceiling
Number Of Blades:
3
Number Of Speeds:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 PH
RoHS Compliance:
No
Shaft Diameter:
1/2 IN
Size:
27 IN
Spec Sheet:
Special Features:
Features: Easy Access Hinged Guard;18 IN Drop Down;2-Speed Switch;Steel Hub/Spider Aluminum Paddle Blades;Coated Steel Guards;3 Year Warranty;Totally Enclosed;Permanent Split Capacitor;Permanently Lubricated; Blade Material: Aluminum; Color: Gray
Speed:
800 (Low);1100 (High) RPM
Standard:
cETLus Listed;OSHA
Stock Type:
Shelf Stock
Style:
Paddle Blade
Type:
Unassembled Maximum Duty
UNSPSC:
40101602
Voltage Rating:
120 V
Warranty Link:
Weight:
46.000 L
