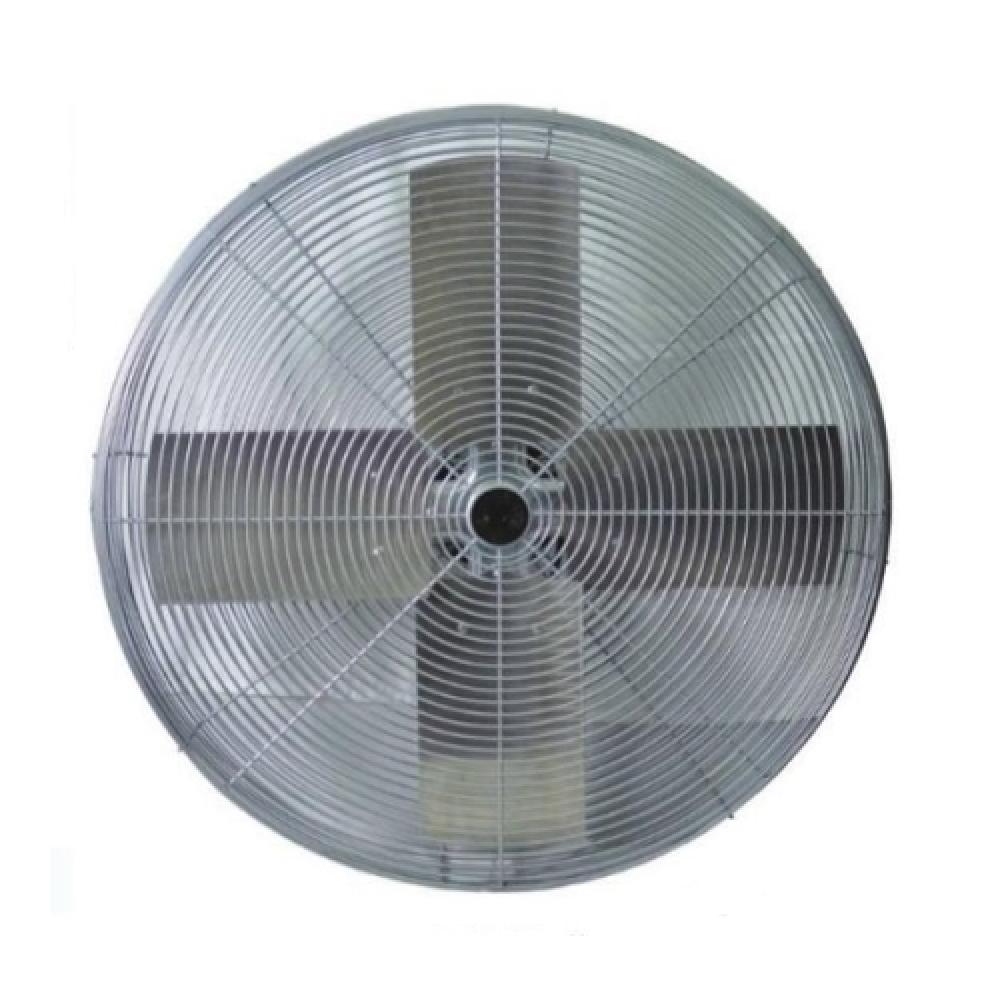

20" Washdown Rated Assembled Fan Head

TPI
20" Washdown Rated Assembled Fan Head

Part Number: IHP20HWD
UPC: 00686334872195
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Industrial Assembled Circulator Heads and Mount, Blade Size- 20 IN, Flow Rate- 7150 CFM, 1/3 HP, 2.2/4.5 AMP, Speed- 1725 RPM, 120/240 V, 1 Speed, Paddle Blade, Motor Drive Type, 1 PH
Specifications
Details
Product Height:
9.00"
Product Width:
32.00"
Product Length:
40.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Amperage Rating:
2.2/4.5 AMP
Application:
Indoor-Industrial-Washdown Application
Blade Size:
20 IN
Brand Name:
TPI
Country Of Origin:
US
Drive Type:
Motor
Flow Rate:
7150 CFM
Horsepower:
1/3 HP
Housing Material:
Steel
Mounting:
Pedestal/Wall/I-Beam/Ceiling/Suspension
Number Of Speeds:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 PH
RoHS Compliance:
No
Spec Sheet:
Spec Link
Special Features:
Features: No Cord-Junction Box Provided for Hard Wiring;Steel Hub/Spider Aluminum Paddle Blades;Coated Steel Guards;1 Year Warranty;Totally Enclosed;Permanently Lubricated; Blade Material: Aluminum
Speed:
1725 RPM
Standard:
cETLus Listed;OSHA
Stock Type:
Shelf Stock
Style:
Paddle Blade
Type:
Assembled
UNSPSC:
40101602
Voltage Rating:
120/240 V
Warranty Link:
Warranty Information
Weight:
46.000 L
