20" Ped Mtd Com Circ 120V, 1/10HP, 3 Spd

TPI

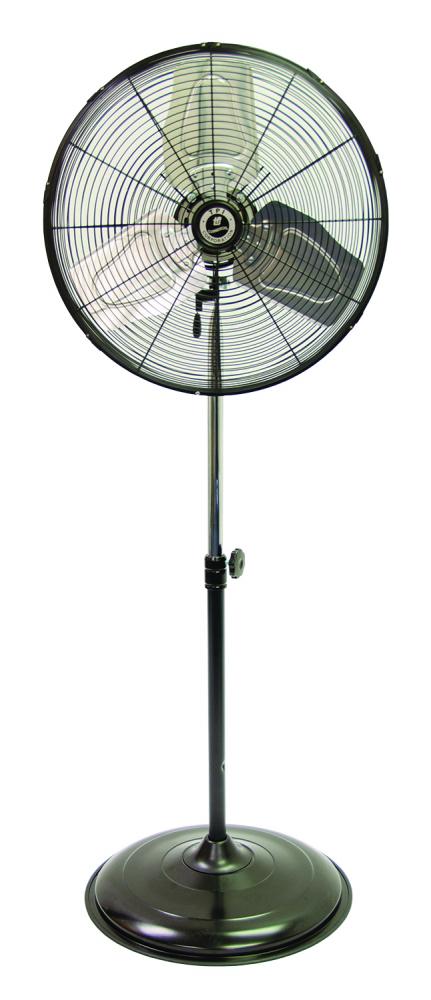

20" Ped Mtd Com Circ 120V, 1/10HP, 3 Spd

Part Number: CACU20P
UPC: 00686334877800
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
20" Commercial Circulator, Pedestal Mount, Flow Rate- 1780 (High), 1600 (Medium), 1420 (Low) CFM, Horsepower- 1/10 HP, 1.4 AMP, Speed- RPM, 120 V, 3 Speeds, 1 PH, AC Motor Drive Type
Specifications
Details
Product Height:
30.75"
Product Width:
7.31"
Product Length:
26.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Number of Blades:
3 Blades
Amperage Rating:
1.4
Application:
School, Shop, Office, Warehouse
Blade Size:
20
Brand Name:
TPI
Country Of Origin:
CN
Drive Type:
AC Motor
Flow Rate:
1780 (High), 1600 (Medium), 1420 (Low)
Horsepower:
1/10
Housing Material:
Steel (Guards)
Mounting:
Pedestal Mount
Number Of Blades:
3
Number Of Speeds:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
Propeller Material:
Aluminum (Paddle Blade)
RoHS Compliance:
No
Shaft Diameter:
0.5
Size:
22 Overall Fan Width
Spec Sheet:
Spec Link
Special Features:
Features: Pull Chain Switch, SJT Type 3 Conductor, 9 Ft Long Cord, Coated Steel Guards with Retaining Clips, Paddle Blade, Pole Adjusts Center of Fan from 43 IN to 60 IN, Ball Bearing, Open Ventilated, Permanently Lubricated, Permanent Split Capacitor
Standard:
OSHA, cULus Listed
Stock Type:
Shelf Stock
Style:
Round
Type:
Commercial Circulator
UNSPSC:
40101602
Voltage Rating:
120
Warranty Link:
Warranty Information
Weight:
52.000 L
