20" Osc Fan Head 120V 1/4 HP, 2Spd

TPI

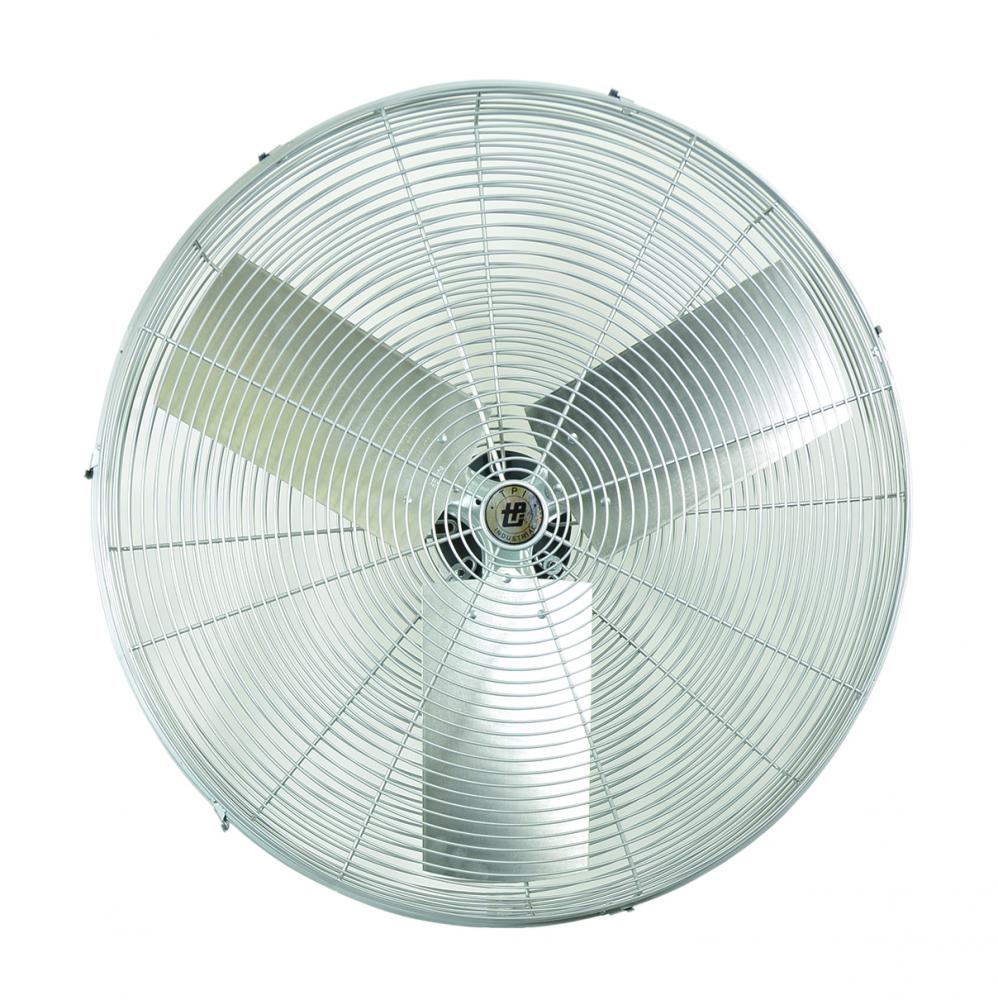

20" Osc Fan Head 120V 1/4 HP, 2Spd

Part Number: ACH20O
UPC: 00686334868488
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
20" Assembled Circulator Fan Head, Flow Rate- 3000 (High), 2600 (Low) CFM, Horsepower- 1/4 HP, 2.4 AMP, Speed- 1100 (High), 900 (Low) RPM, 120 V, 2 Speeds, 1 PH, AC Motor Drive Type
Specifications
Details
Product Height:
18.00"
Product Width:
26.00"
Product Length:
26.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Number of Blades:
3 Blades
Amperage Rating:
2.4
Application:
Industrial
Blade Size:
20
Brand Name:
TPI
Country Of Origin:
US
Drive Type:
AC Motor
Flow Rate:
3000 (High), 2600 (Low)
Horsepower:
1/4
Housing Material:
Steel (Guards)
Number Of Blades:
3
Number Of Speeds:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
Propeller Material:
Aluminum (Paddle Blade)
RoHS Compliance:
No
Shaft Diameter:
1/2
Size:
22 Overall Fan Head
Spec Sheet:
Spec Link
Special Features:
Features: Pull Chain Switch, SJT Type 3 Conductor, 12 Ft Long Cord, Paddle Blade, Coated Steel Guard, Ball Bearing, Permanent Split Capacitor, Totally Enclosed, Permanently Lubricated, Frame Size: 48
Speed:
1100 (High), 900 (Low)
Standard:
OSHA, cETLus Listed
Stock Type:
Shelf Stock
Style:
Round
Type:
Assembled Circulator
UNSPSC:
40101602
Voltage Rating:
120
Warranty Link:
Warranty Information
Weight:
39.000 L
