Image may not reflect selected features
No Image
Available
Available
SolaHD

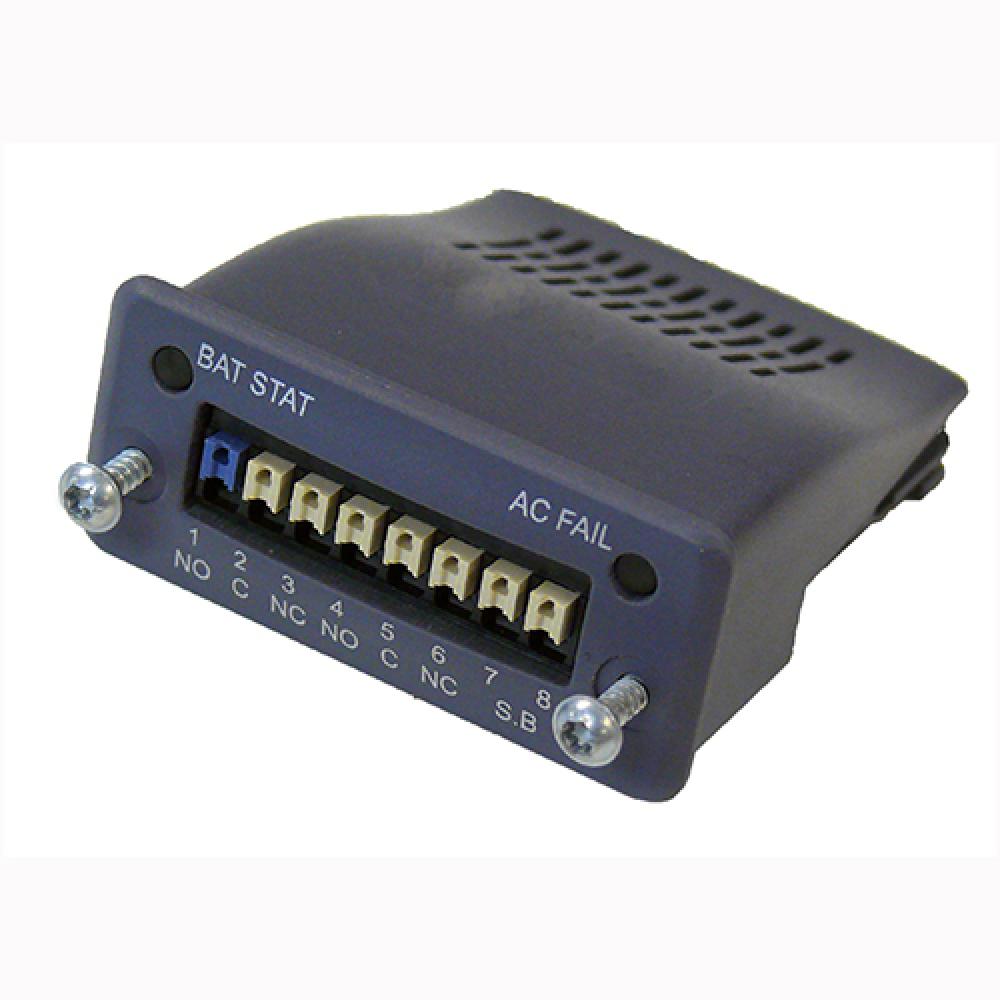

SDU CF Dry Contact I/O RELAY CARD
Part Number: SDUCFRELAYCARD
UPC: 00783472012954
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Compact Flash Dry contact digital I/O card, push in button secure clamp terminals, wire size range 16-24 AWG, Relay contact signal for "On Battery", "Low Battery", and "UPS Stand by" Modes
Specifications
Details
Product Height:
1.10"
Product Width:
3.10"
Product Length:
2.80"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Power Conditioning Equipment
, Voltage Regulation
Amperage Rating:
1
Application:
Programmable Logic Controllers, Factory Automation, Robotics, Conveying Equipment, Computer-based Control Systems
Brand Name:
SolaHD
Country Of Origin:
SE
Enclosure:
LCP (Liquid Crystal Polymer), Natural, Thermoplastic, UL 94 V-0
Frequency Rating:
50/60
Height:
2.2
Interface:
RJ45, 2 Port
Mounting:
Compact Flash Connector, Card
Number Of Receptacles:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Receptacle:
N/A
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
LED Diagnostics, Relay Actived low via normally open momentary switch
Standard:
Emission EN 61000-6-4 EN55016-2-3 Radiated emission EN55022 Conducted emission
Stock Type:
Shelf Stock
UNSPSC:
39121011
Voltage Rating:
3.3
Weight:
.010 L
Width:
2
