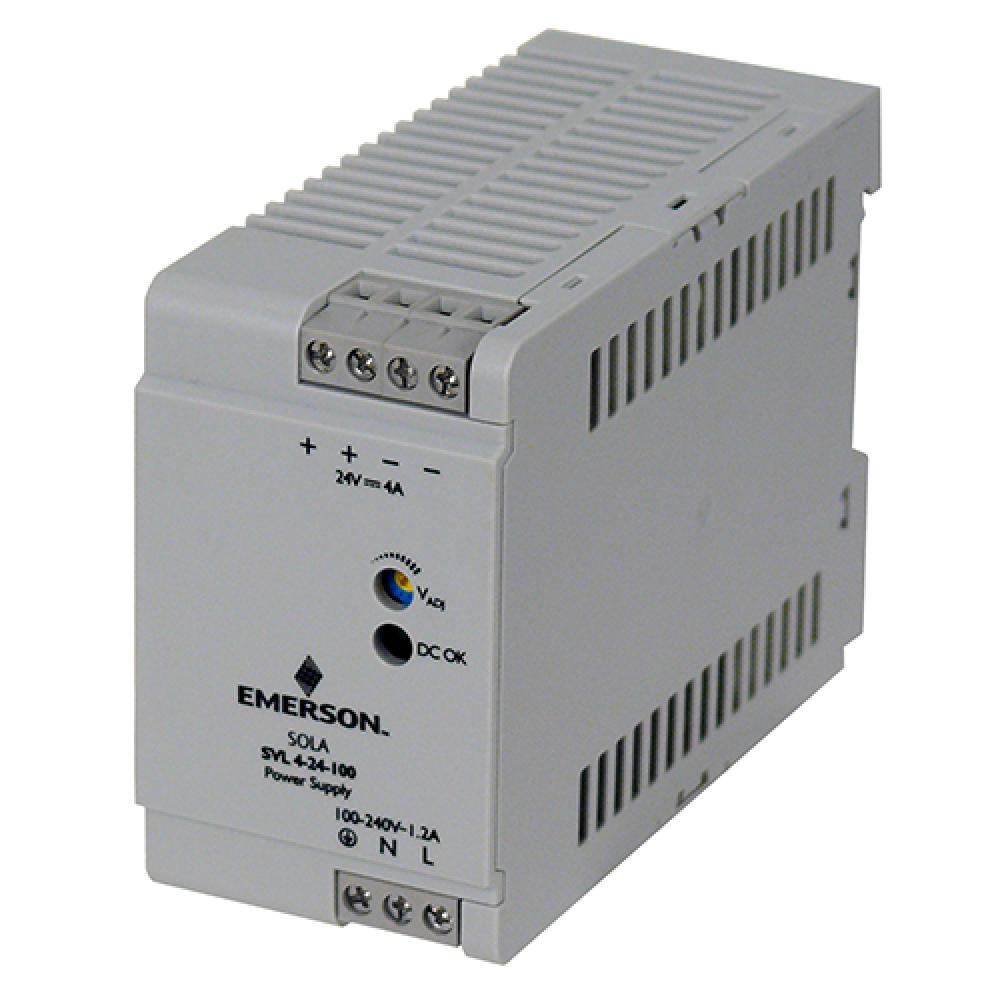

96W 24V DIN PS 85-264VAC

SolaHD
96W 24V DIN PS 85-264VAC

Part Number: SVL424100
UPC: 00783472873210
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 4A, Max. Power: 96W, Frequency Rating: 50/65Hz, Single Phase, DIN Rail Mounting
Specifications
Details
Product Height:
2.20"
Product Width:
3.40"
Product Length:
4.80"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Amperage Rating:
4
Application:
Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;
Brand Name:
SolaHD
Cable Size:
Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors
Country Of Origin:
TH
Efficiency:
89
Enclosure:
To be installed in an enclosure
Environmental Conditions:
To be installed in a controlled environment
Frequency Rating:
50/60
Fuse Rating:
Internally Fused
Height:
2.95
Length:
3.93
Material:
Plastic
Mounting:
DIN Rail
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Universal Input; Convection cooling; DC OK LED; Protection: short circuit, over voltage, overload, over temperature; Two year warranty
Standard:
UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme
Stock Type:
Shelf Stock
Sub Brand:
Sola
Type:
SVL Essential Din Rail Series
UNSPSC:
39121004
Voltage Rating:
24
Wattage:
96
Weight:
.800 L
Width:
1.77
