SolaHD

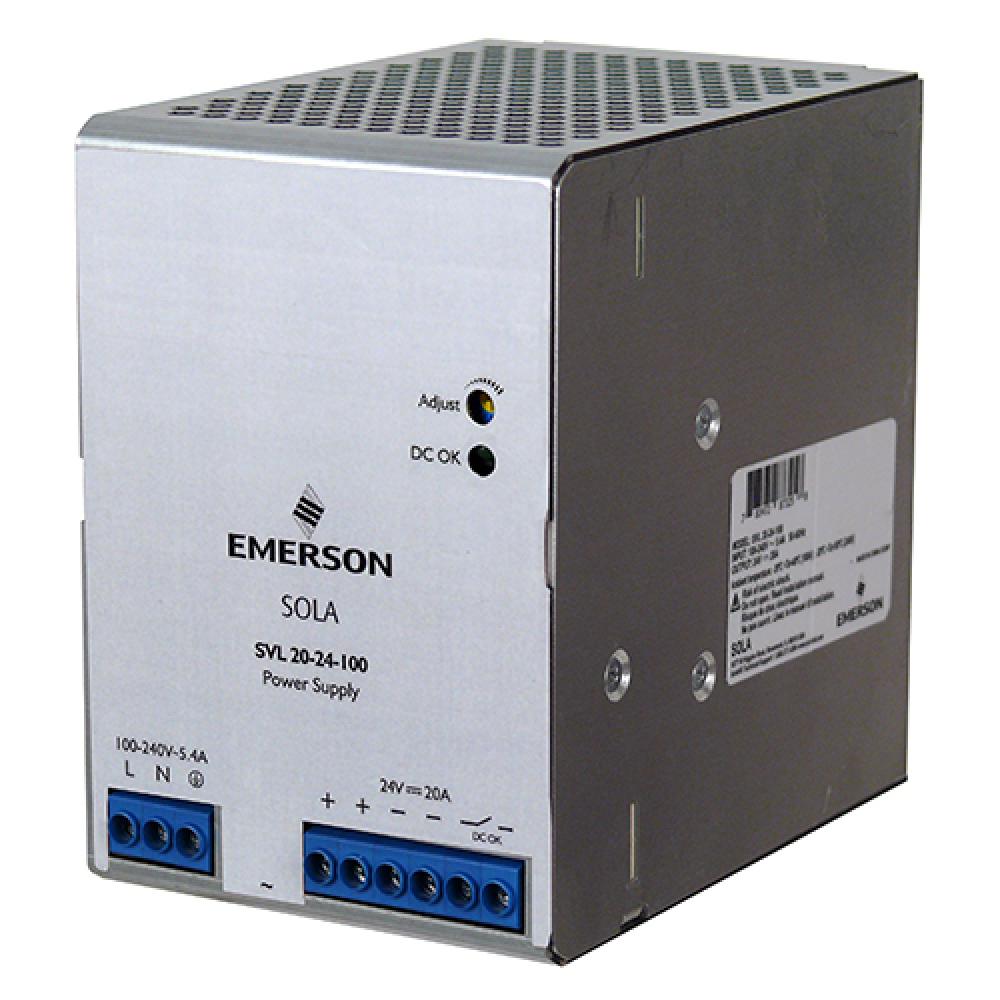

480W 24V DIN PS 85-264VAC
Part Number: SVL2024100
UPC: 00783472873258
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 20A, Max. Power: 480W, Frequency Rating: 50/69Hz, Single Phase, DIN Rail Mounting
Specifications
Details
Product Height:
5.70"
Product Width:
6.60"
Product Length:
6.80"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Amperage Rating:
20
Application:
Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;
Brand Name:
SolaHD
Cable Size:
Input Connector size range: 16-12 AWG (1.5-3.3 mm2) for solid conductors; Output Connector size range: 16-12 AWG (1.5-3.3 mm2) for solid conductors
Control:
DC OK Relay
Country Of Origin:
TH
Efficiency:
88
Enclosure:
To be installed in an enclosure
Environmental Conditions:
To be installed in a controlled environment
Frequency Rating:
50/60
Fuse Rating:
Internally Fused
Height:
4.87
Length:
5.06
Material:
Metal
Mounting:
DIN Rail
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Universal Input; Convection cooling; DC OK LED; DC OK Relay; Protection: short circuit, over voltage, overload, over temperature; Two year warranty
Standard:
UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme
Stock Type:
Shelf Stock
Sub Brand:
Sola
Type:
SVL Essential Din Rail Series
UNSPSC:
39121004
Voltage Rating:
24
Wattage:
480
Weight:
3.250 L
Width:
3.37
