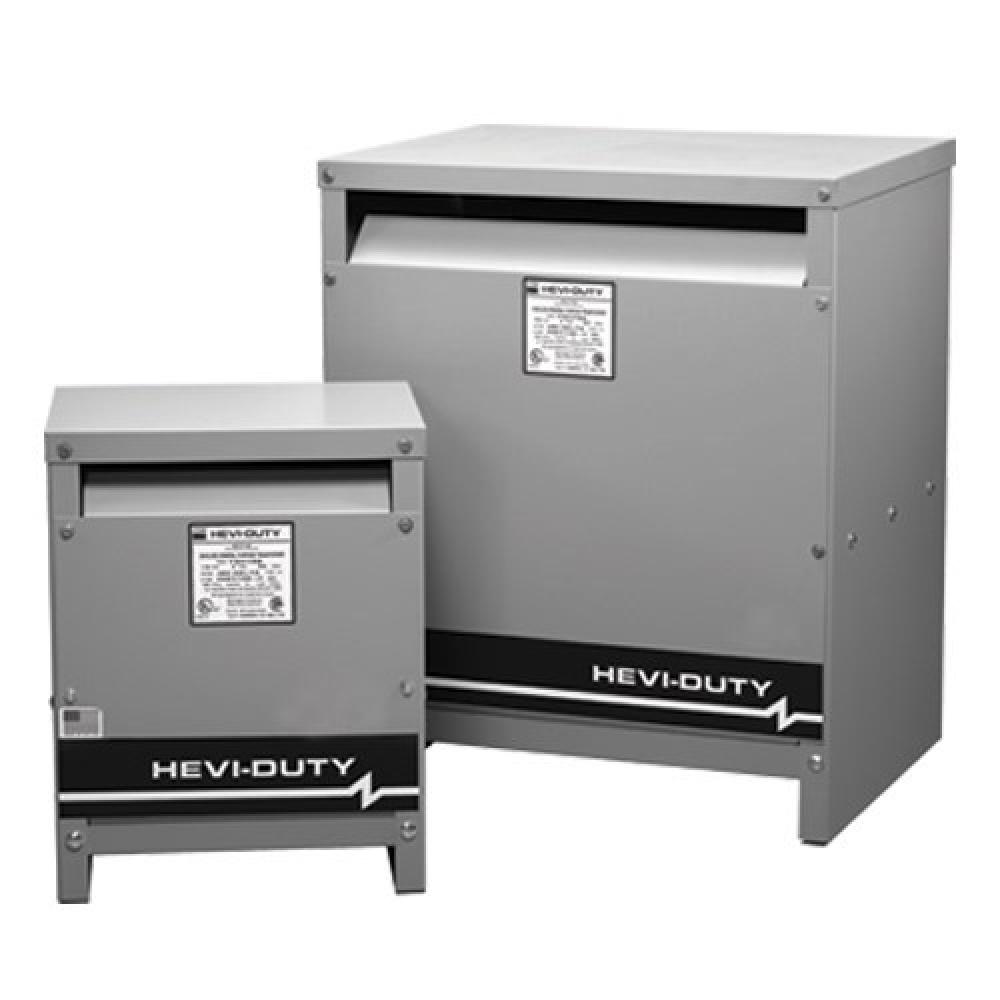

Image may not reflect selected features
No Image
Available
300KVA 480D-208Y CU

SolaHD
300KVA 480D-208Y CU

Part Number: E2H300SCU
UPC: 00783472148332
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
SolaHD, Ventilated Distribution Transformer, DOE 10 Cfr P431 - DOE 2016 Compliant, Ul Listed E25872, 300 KVA, Primary Voltage 480 V, Secondary Voltage 208 V, 60 HZ, 3 Phase, Number Of Taps 7, Temperature Rating 150 Degrees C, Connection Delta-Wye, Winding Copper, Enclosure Nema Type 1
Specifications
Details
Product Height:
57.00"
Product Width:
40.00"
Product Length:
40.00"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Power Conditioning Equipment , Transformers And Accessories
Application:
Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment.
Brand Name:
SolaHD
Cooling:
AA
Country Of Origin:
US
Efficiency:
99.02
Enclosure:
NEMA TYPE 1
Frequency Rating:
60
Height:
46
Insulation Class:
UL Class 220 DEG C
KVA Rating:
300
Length:
36
Mounting:
FLOOR
Number Of Phases:
3
Number Of Taps:
7
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
480
RoHS Compliance:
Yes
Secondary Voltage:
208
Special Features:
DOE 10 CFR p431 - DOE 2016 Compliant
Standard:
UL Listed E25872
Temperature Rating:
150
Type:
Ventilated Distribution Transformer
UNSPSC:
39121001
Weight:
1662.000 L
Width:
24
Winding:
Copper
