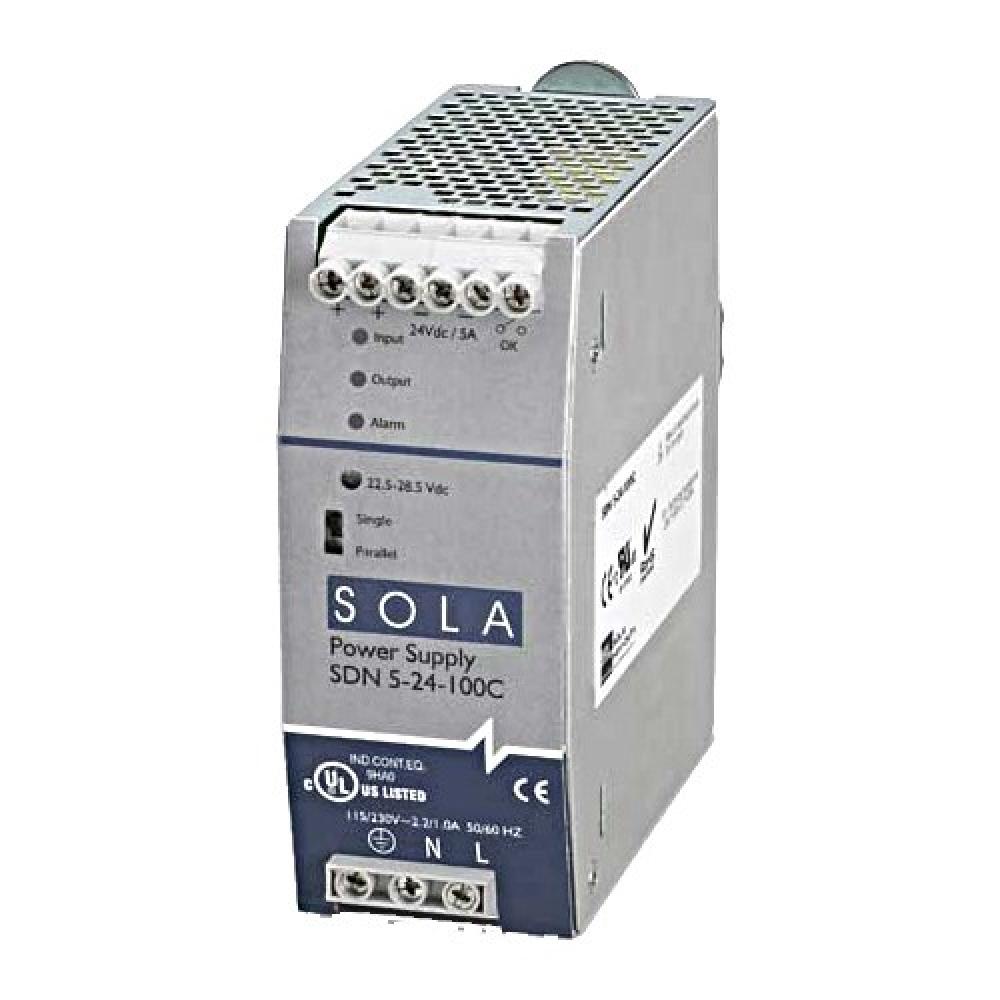

120W 24V DIN P/S 115/230V IN IECEX

SolaHD
120W 24V DIN P/S 115/230V IN IECEX

Part Number: SDN5-24-100C
UPC: 00783472001941
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
SDN-C Series Compact DIN Rail Power Supply, Nominal Output Current: 5 A (120 W), Nominal Voltage Input: 115/230 Vac, Nominal Voltage Output: 24 V, Frequency 43/67 Hz, Single Phase
Specifications
Details
Product Height:
3.10"
Product Width:
7.63"
Product Length:
7.50"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
General Power Distribution
Amperage Rating:
1.65 - 0.55
Application:
Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment.
Brand Name:
SolaHD
Cable Size:
16 - 10 AWG Solid
Country Of Origin:
PH
Efficiency:
88
Enclosure:
NEMA 3R with optional weather shield (WS-15)
Environmental Conditions:
90 RH Humidity Range
Frequency Rating:
60
Fuse Rating:
Internally Fused
Height:
4.88
Insulation:
220 DEG Insulation System
Length:
16
Material:
Metal Housing
Mounting:
Wall Mounting Brackets Available
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
Yes
Spec Sheet:
Spec Link
Special Features:
UL-3R ventilated outdoor enclosures when used with optional weather shields (order separately), UL class 220 DEG C/428 DEG F insulation system, 150 DEG C/302 DEG F temperature rise under full load, Terminal board connections and spacious wiring compartment
Standard:
UL Listed E25872
Stock Type:
Shelf Stock
Type:
Ventilated Distribution Transformer
UNSPSC:
39121004
Voltage Rating:
115 - 230
Warranty Link:
Warranty Information
Wattage:
12
Weight:
2.150 L
Width:
16
