SolaHD
0.500KVA 240X480-120 W/ FB2x
Part Number: E500
UPC: 00783472531295
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview

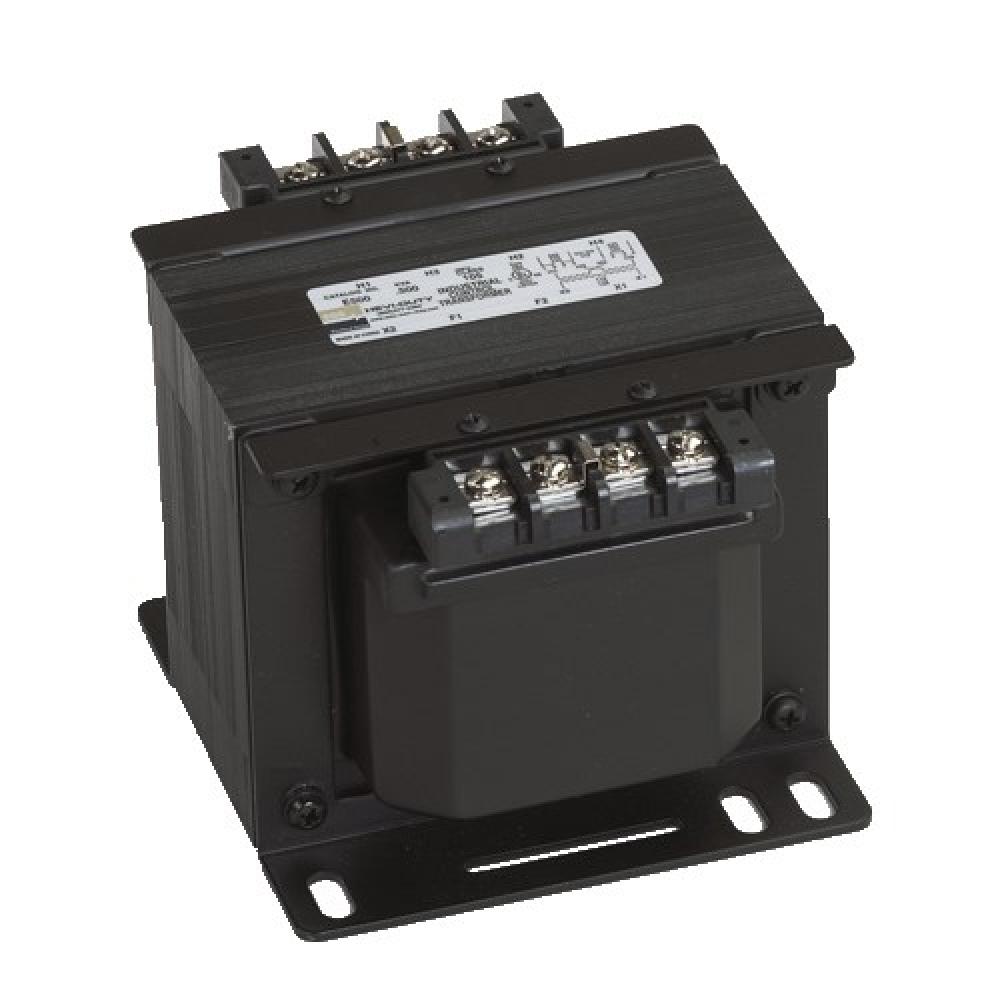

Encapsulated Industrial Control Transformer 500VA, Volts Primary: 220x440, 230x460, 240x 480, Volts Secondary: 110, 115, 120, Frequency 50/60 HZ/60 HZ
Specifications
Details
Product Height:
8.00"
Product Width:
7.00"
Product Length:
8.90"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Power Conditioning Equipment
, Transformers And Accessories
Application:
Industrial
Brand Name:
SolaHD
Country Of Origin:
US
Frequency Rating:
50/60
Height:
4.53
KVA Rating:
0.5
Length:
5.07
Mounting:
Heavy Gauge Steel Mounting Plate
Number Of Phases:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
240 x 480 Volt Primary
RoHS Compliance:
Yes
Secondary Voltage:
120 Volt Secondary
Spec Sheet:
Special Features:
50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against
Standard:
cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
Stock Type:
Shelf Stock
Type:
SBE Encapsulated Series Transformers
UNSPSC:
39121026
Warranty Link:
Wattage:
350
Weight:
18.750 L
Width:
5.25
