Image may not reflect selected features
No Image
Available
Available
SolaHD
0.250KVA 240X480-120
Part Number: E250
UPC: 00783472531264
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview

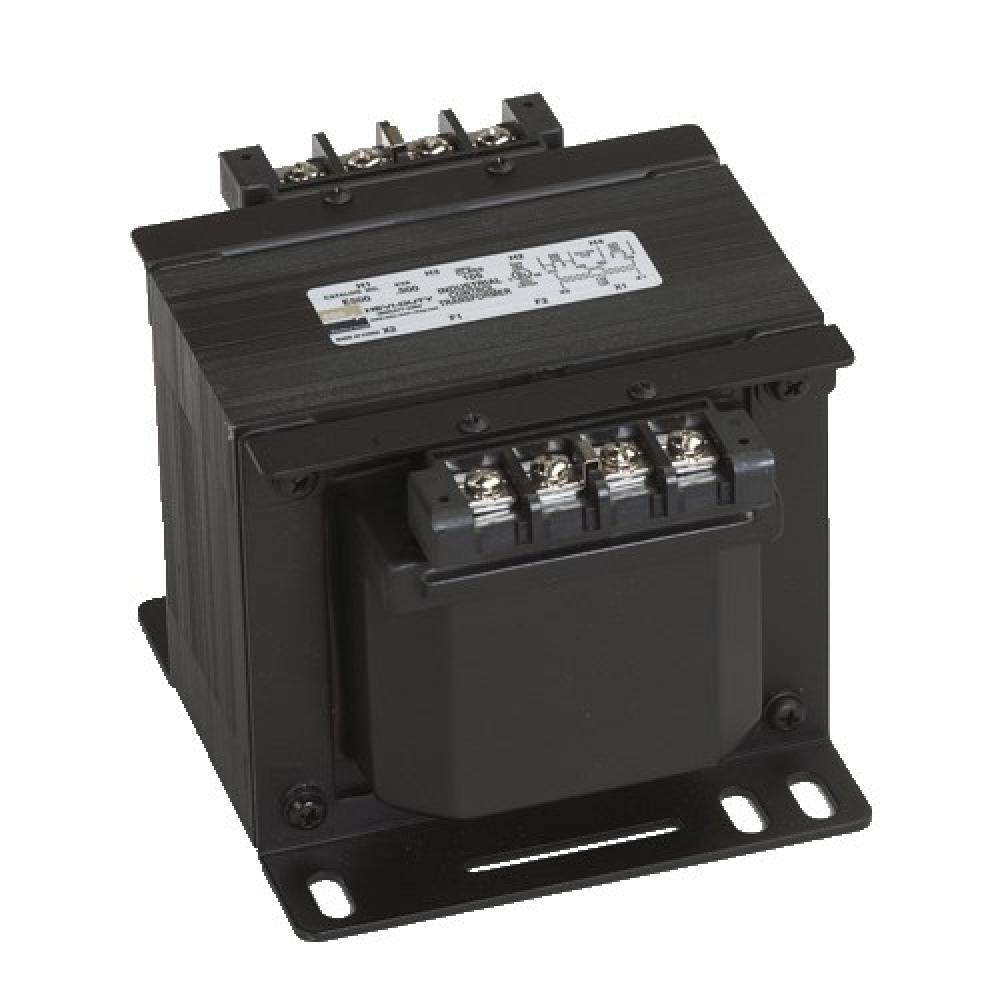

Encapsulated Industrial Control Transformer 250VA, Volts Primary: 220x440, 230x460, 240x 480, Volts Secondary: 110, 115, 120, Frequency 50/60 HZ/60 HZ
Specifications
Details
Product Height:
7.40"
Product Width:
6.80"
Product Length:
9.70"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Power Conditioning Equipment
, Transformers And Accessories
Application:
Industrial
Brand Name:
SolaHD
Country Of Origin:
VN
Frequency Rating:
50/60
Height:
3.89
KVA Rating:
0.25
Length:
4.79
Mounting:
Heavy Gauge Steel Mounting Plate
Number Of Phases:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
240 x 480 Volt Primary
RoHS Compliance:
Yes
Secondary Voltage:
120 Volt Secondary
Spec Sheet:
Special Features:
50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against
Standard:
cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
Stock Type:
Shelf Stock
Type:
SBE Encapsulated Series Transformers
UNSPSC:
39121026
Warranty Link:
Wattage:
200
Weight:
10.400 L
Width:
4.5
