Surface Raceway, LD10 Low Volt. Single Chnl., 10

Panduit
Surface Raceway, LD10 Low Volt. Single Chnl., 10

Part Number: LD10IG10-A
UPC: 00074983729999
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

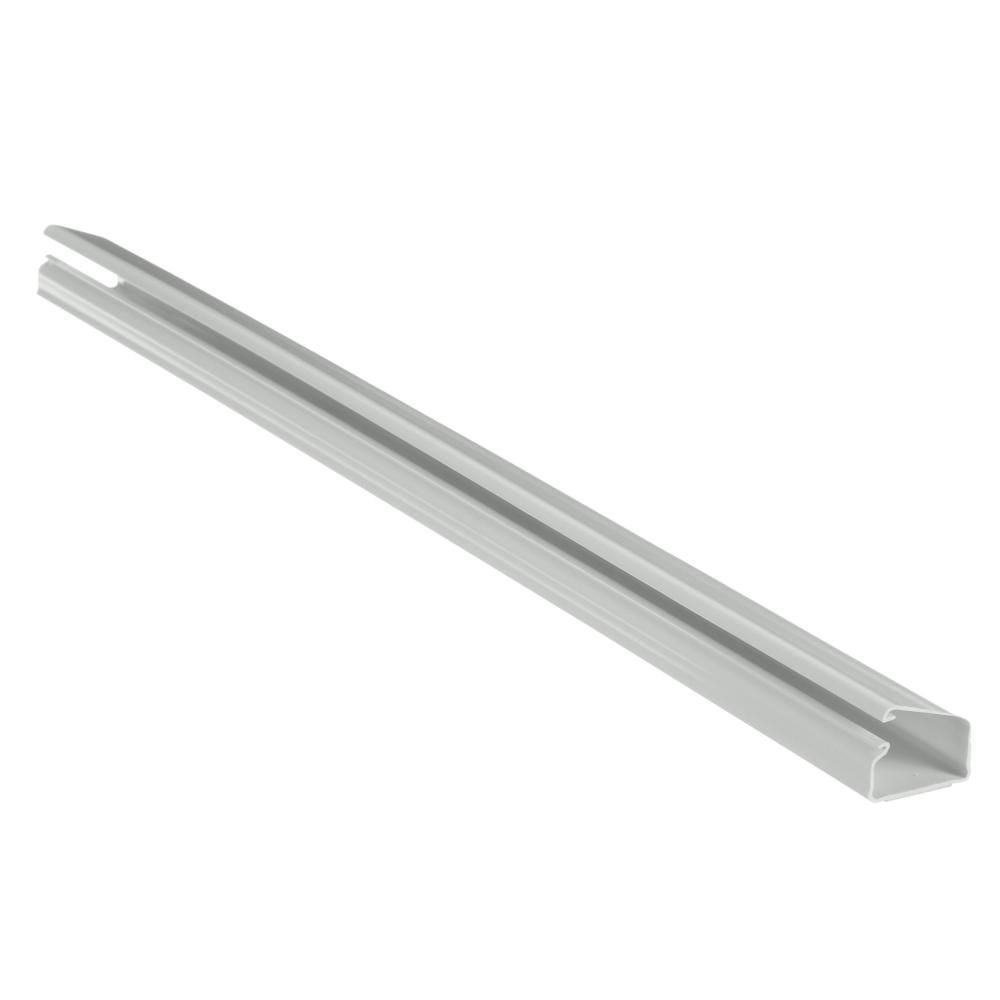

The LD10 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 10 feet in length and is 1.5 inches wide by 0.94 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is constructed of rigid PVC and is International Gray.
Specifications
Details
Product Height:
0.40"
Product Width:
4.10"
Product Length:
120.00"
Electrical Category:
Wire Raceways And Busways
Electrical Subcategory:
Wire Raceways
Application:
Pan-Way ® LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Homes
Brand Name:
Panduit®
Country Of Origin:
USA
Cover Type:
Single-Channel
Eng Drawing Link:
Full Engineering Drawing
Installation Link:
Installation Instructions
Length:
120
Material:
PVC
Order Minimum:
200.000 FT
Order Multiple:
200.000 FT
RoHS Compliance:
Yes
Spec Sheet:
Spec Link
Standard:
Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant.
Stock Type:
Shelf Stock
Sub Brand:
Pan-Way®
Tech Drawing Link:
Tech Drawing
Type:
Surface Raceway Channel
UNSPSC:
39131710
Video Clip:
Product Video Clip
Weight:
1.490 L
Width:
1.51
