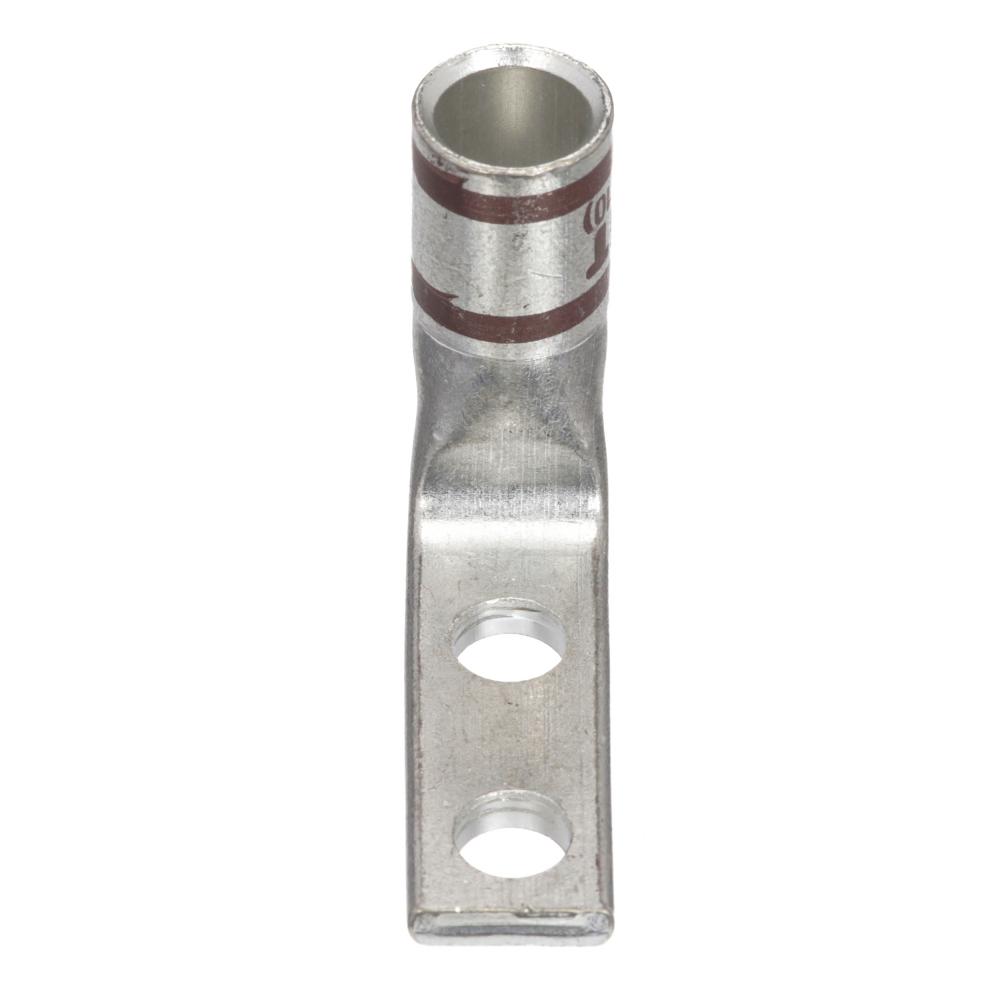

Pan-Lug™ LCDXN2-14AF-E Compression Connectors

Panduit
Pan-Lug™ LCDXN2-14AF-E Compression Connectors

Part Number: LCDXN2-14AF-E
UPC: 00074983028818
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Two-hole, flex lug, standard barrel with window, narrow tongue, #2 AWG wire, 1/4 stud hole, .63 hole spacing, 90° angle tongue.
Specifications
Details
Product Height:
3.40"
Product Width:
3.40"
Product Length:
4.75"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Brand Name:
Panduit®
Color:
Brown
Compare Number:
100
Country Of Origin:
MEX
Eng Drawing Link:
Full Engineering Drawing
Installation Link:
Installation Instructions
Material:
Tin-Plated Copper
Mounting:
11/16
Order Minimum:
1.000 PC
Order Multiple:
1.000 PC
RoHS Compliance:
Yes
Size:
#2 AWG Class B, C, G, H, I, K, M and DLO
Special Features:
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard:
UL Listed and CSA Certified to 35kV and temperature rated to 90°C
Stock Type:
Shelf Stock
Stud Size:
1/4
Sub Brand:
Pan-Lug™
Tech Bulletin Link:
Technical Bulletin
Tech Drawing Link:
Tech Drawing
Type:
Compression Lug
UNSPSC:
39121405
Video Clip:
Product Video Clip
Weight:
.950 L
