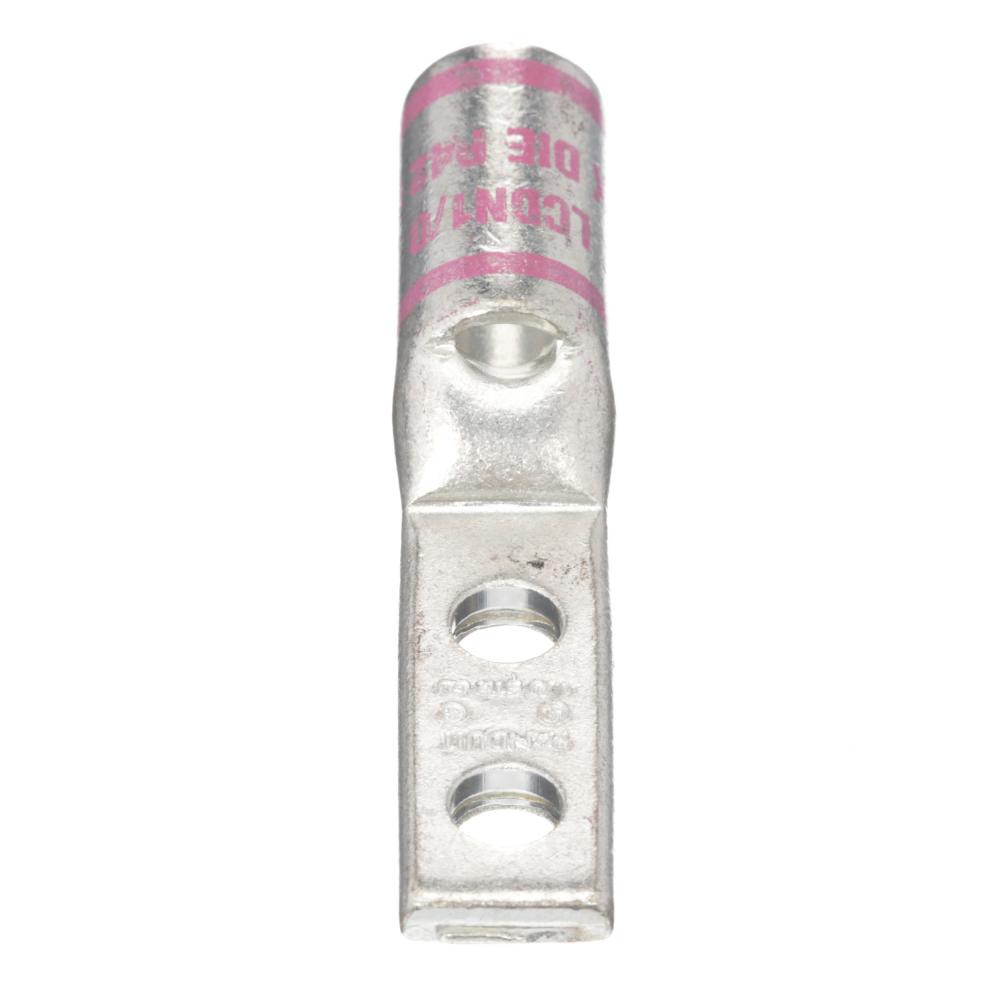

Pan-Lug™ LCDN1/0-14A-X Copper Compression Conn

Panduit
Pan-Lug™ LCDN1/0-14A-X Copper Compression Conn

Part Number: LCDN1/0-14A-X
UPC: 00074983021116
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Two-hole, standard barrel with window, narrow tongue lug, 1/0 AWG wire, 1/4 stud hole, .63 hole spacing.
Specifications
Details
Product Height:
3.20"
Product Width:
3.40"
Product Length:
4.80"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Brand Name:
Panduit®
Color:
Pink
Compare Number:
100
Country Of Origin:
MEX
Eng Drawing Link:
Full Engineering Drawing
Installation Link:
Installation Instructions
Material:
Tin-Plated Copper
Mounting:
1
Number Of Holes:
2
Order Minimum:
1.000 PC
Order Multiple:
1.000 PC
RoHS Compliance:
Yes
Size:
1/0 AWG Code
Special Features:
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard:
UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
Stock Type:
Shelf Stock
Stud Size:
1/4
Sub Brand:
Pan-Lug™
Tech Bulletin Link:
Technical Bulletin
Tech Drawing Link:
Tech Drawing
Type:
Compression Lug
UNSPSC:
39121405
Video Clip:
Product Video Clip
Weight:
.700 L
