CuCbl,Cat6A,4-P,26AWG,U/UTP,LSZH,BU,305M

Panduit
CuCbl,Cat6A,4-P,26AWG,U/UTP,LSZH,BU,305M

Part Number: PUZ6ASD04BU-EG
UPC: 00074983970698
Call for Price
  • Manufacturer availability unknown.
1000 , 12.6000 IN
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

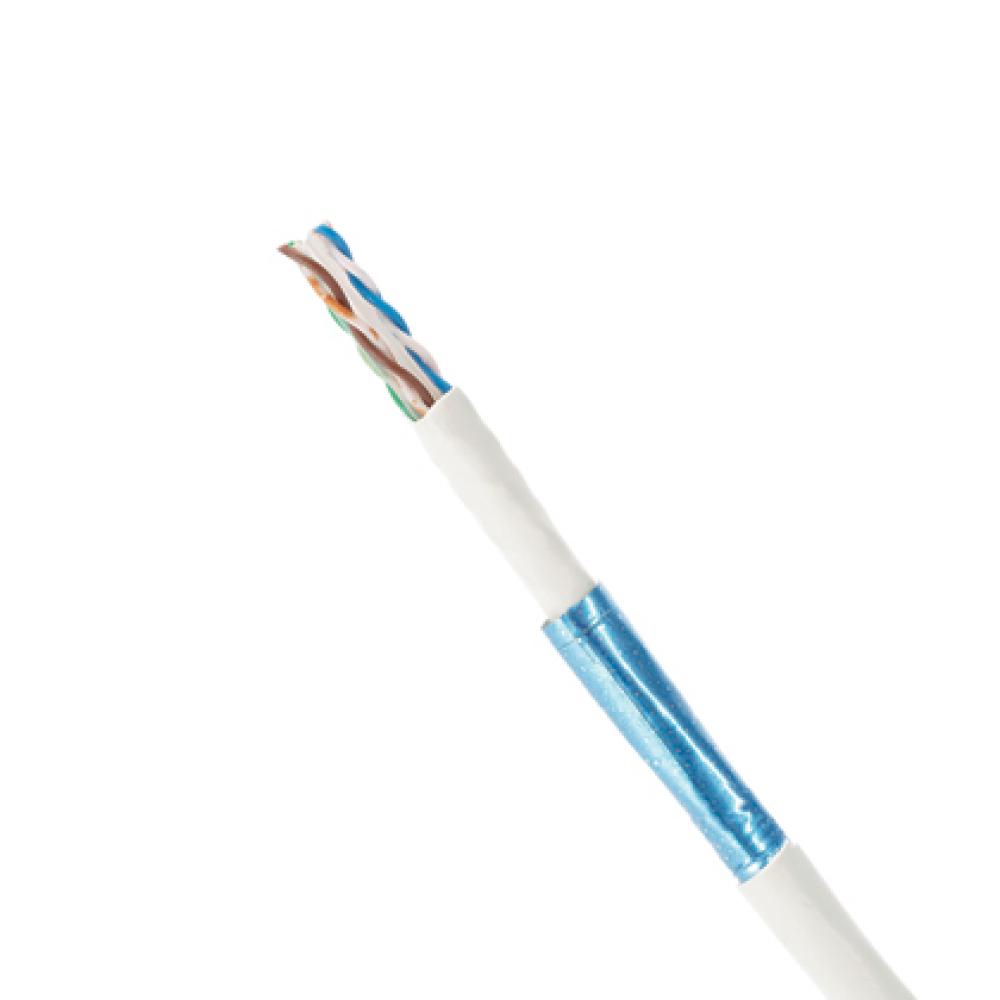

Copper cable, category 6A (SD) U/UTP, low smoke zero halogen (LSZH-3), 4-pair, conductors are 26 AWG with HDPE insulation, twisted in pairs, separated by an integrated pair divider, surrounded by a patent-pending matrix tape and protected by a LSZH flame-retardant PVC jacket. Ideal for installations up to 70 meters, blue.
Specifications
Details
Product Height:
12.20"
Product Width:
12.60"
Electrical Category:
Wire And Cable
Electrical Subcategory:
Electrical Cable
Electrical Subtype:
Copper Cable
Application:
Indoor
Brand Name:
Panduit®
Color:
Blue
Conductor Material:
Copper
Construction:
U/UTP
Country Of Origin:
CHN
Installation Link:
Installation Instructions
Insulation Material:
HDPE
Jacket Material:
High Density Polyethylene
Length:
1000 , 12.6000 IN
Number Of Conductors:
4
Order Minimum:
18.000 RL
Order Multiple:
18.000 RL
Outside Diameter:
0.24
Resistance:
Flame Retardant
RoHS Compliance:
Yes
Spec Sheet:
Spec Link
Standard:
Exceeds electrical and alien crosstalk performance requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA standards for supporting 10GBASE-T transmission over twisted-pair cabling systems in a 4-connector configuration, HDPE (LSZH-3): IEC 6033
Stock Type:
Configured on order
Sub Brand:
PanNet
Tech Bulletin Link:
Technical Bulletin
Temperature Rating:
167
Type:
Copper Cable
UNSPSC:
26121634
Video Clip:
Product Video Clip
Voltage Rating:
80
Weight:
30/1000 ft. , 34.000 L
