CuCbl,Cat6,4-P,23AWG,SF/UTP,LSZH,WH,500M

Panduit
CuCbl,Cat6,4-P,23AWG,SF/UTP,LSZH,WH,500M

Part Number: PSFL6004WH-KD
UPC: 00074983717477
Call for Price
  • Manufacturer availability unknown.
1640 , IN
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

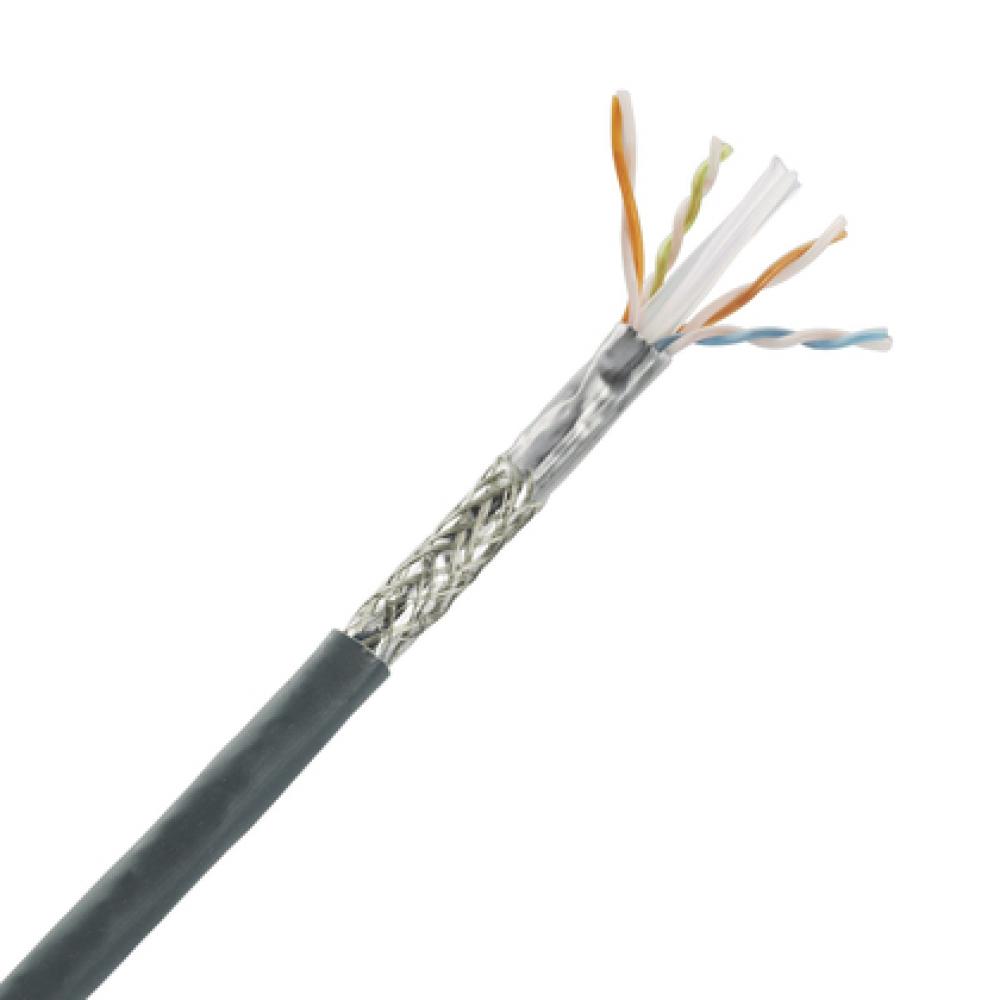

Shielded copper cable, category 6 SF/UTP, low smoke zero halogen (LSZH), 4-pair, conductors are 23 AWG construction with PE insulation, twisted in pairs, separated by an integrated pair separator, surrounded by an overall braid and overall foil shield, and protected by a LSZH jacket, white.
Specifications
Details
Electrical Category:
Wire And Cable
Electrical Subcategory:
Electrical Cable
Electrical Subtype:
Copper Cable
Application:
Indoor
Brand Name:
Panduit®
Color:
White
Conductor Material:
Copper
Construction:
SF/UTP
Country Of Origin:
GBR
Insulation Material:
PE
Jacket Material:
High Density Polyethene
Length:
1640 , IN
Number Of Conductors:
4
Order Minimum:
12.000 RL
Order Multiple:
12.000 RL
Outside Diameter:
0.29
Resistance:
Flame-Resistant
RoHS Compliance:
Yes
Spec Sheet:
Spec Link
Standard:
Exceeds the requirements of ISO 11801 Class E and ANSI/TIA-568-C.2 Category 6 standards; CE Compliant: EuroClass Eca; PoE Compliance: Meets IEEE 802.3af and IEEE 802.3at for PoE applications; RoHS Compliant
Stock Type:
Configured on order
Sub Brand:
Pan-Net®
Temperature Rating:
140
Type:
Copper Cable
UNSPSC:
26121634
Voltage Rating:
80
Weight:
63/1640 ft. , 75.000 L
