CU Patch Crd,Cat 6A,S/FTP,7ft,OR

Panduit
CU Patch Crd,Cat 6A,S/FTP,7ft,OR

Part Number: STP6X7OR
UPC: 00074983012879
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

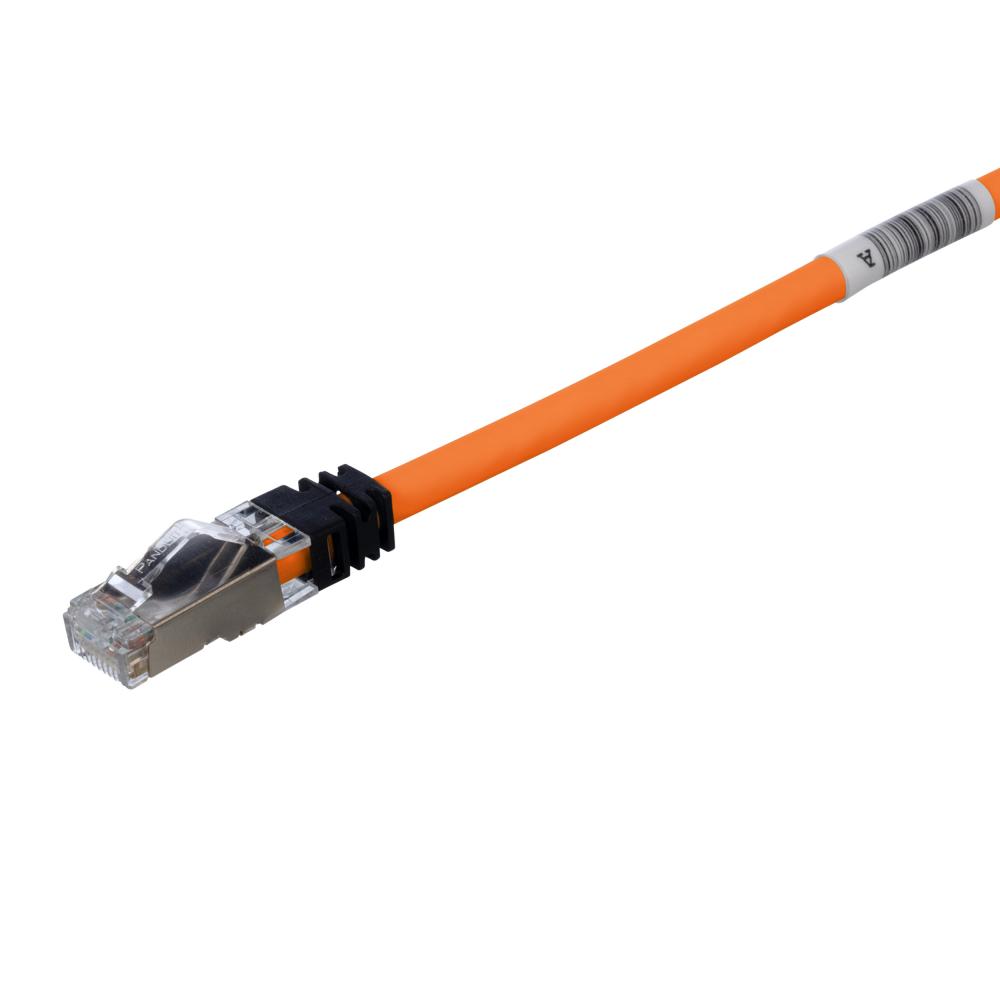

This TX6A™ 10Gig Cat 6A STP Patch Cord is a 7-Foot, Orange cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Details
Product Height:
1.00"
Product Width:
8.55"
Product Length:
8.95"
Electrical Category:
Data Networking And Wireless
Electrical Subcategory:
Data And Network Devices And Equipment
Application:
(1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging
Boot Type:
Modular Plug
Brand Name:
Panduit®
Brochure:
Manufacturer Brochure
Color:
Orange
Conductor Material:
Copper
Country Of Origin:
MUL
Eng Drawing Link:
Full Engineering Drawing
Jacket Material:
LSZH Material
Length:
7.00
Order Minimum:
10.000 PC
Order Multiple:
1.000 PC
Outside Diameter:
0.24
Plug Type:
Modular Plug
RoHS Compliance:
Yes
Spec Sheet:
Spec Link
Standard:
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements (formerly FCC Part 68), meets IEC 60603-7, meets IEC 60332-1, IEC 60754-1, IEC 61034-2, UL 1863 approved, Rated for 2500 cycles with IEEE 802.3af / 802.3at
Stock Type:
Configured on order
Sub Brand:
Pan-Net®
Tech Bulletin Link:
Technical Bulletin
Tech Drawing Link:
Tech Drawing
Temperature Rating:
140
Type:
Shielded Patch Cord
UNSPSC:
43223303
Warranty Link:
Warranty Information
Weight:
.278 L
Wire Size:
26
