Copper Cable, Cat 6A, 23 AWG, UTP, CMR, Blue

Panduit
Copper Cable, Cat 6A, 23 AWG, UTP, CMR, Blue

Part Number: PUR6ASD04BU-CG
UPC: 00074983331628
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

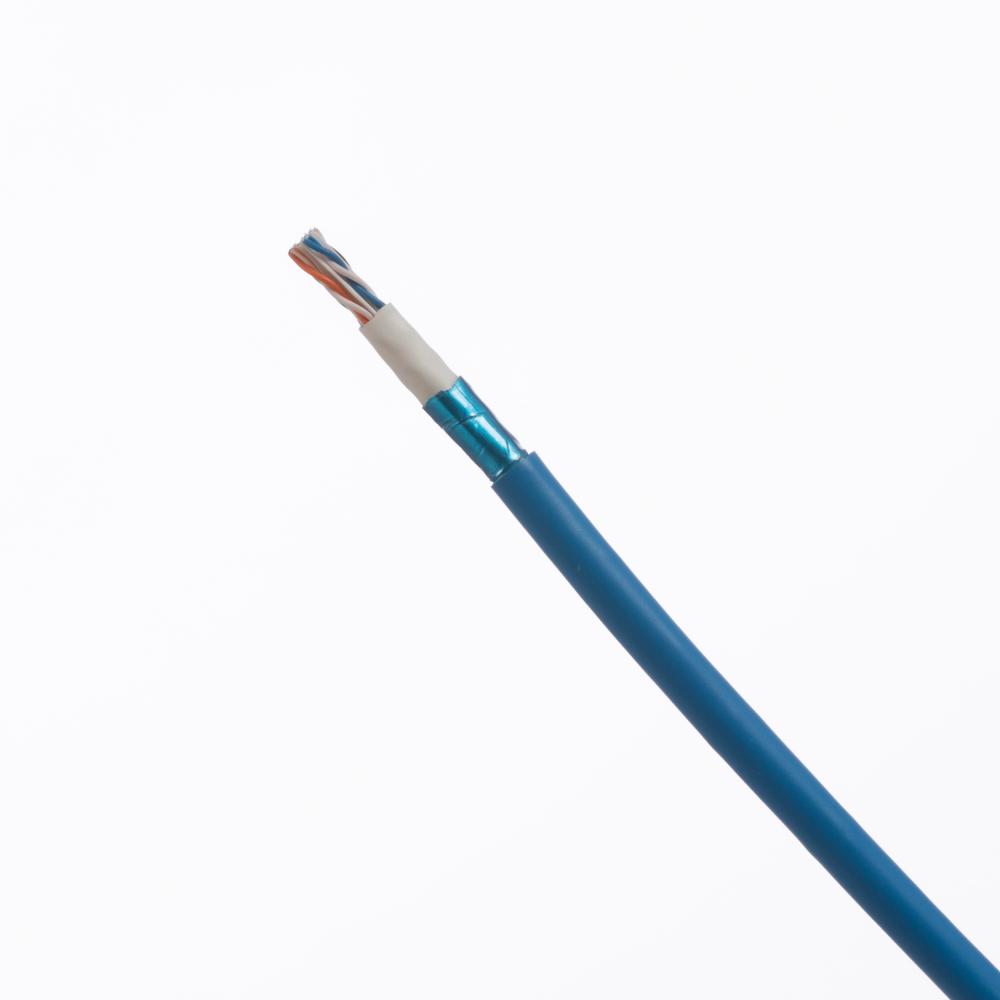

The TX6A-SD™ Cat 6A U/UTP Copper Cable with MaTriX technology constructed of 26 AWG copper conductors with PVC (CM) insulation. The copper conductors are twisted in pairs, separated by an integrated pair divider, surrounded by a patented MaTriX tape and protected by a flame-retardant jacket. The blue, riser (CMR) cable is supplied 305 meters (1,000 feet) to a reel.
Specifications
Details
Product Height:
12.20"
Product Width:
12.60"
Product Length:
12.60"
Electrical Category:
Wire And Cable
Electrical Subcategory:
Electrical Cable
Brand Name:
Panduit®
Color:
Blue
Compare Number:
1000
Conductor Material:
Copper
Construction:
U/UTP
Country Of Origin:
CHN
Installation Link:
Installation Instructions
Insulation Material:
High-Density Polyethylene
Jacket Material:
Polyvinyl Chloride (PVC)
Length:
1000
Number Of Conductors:
4
Order Minimum:
27000.000 FT
Order Multiple:
27000.000 FT
Outside Diameter:
0.24
Resistance:
Flame-Retardant
RoHS Compliance:
Yes
Spec Sheet:
Spec Link
Standard:
Exceeds electrical and alien crosstalk performance requirements of channel performance: ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA, Meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, UL 1666, RoHS Compliant
Stock Type:
Shelf Stock
Sub Brand:
Pan-Net®
Temperature Rating:
167
Type:
Copper Cable
UNSPSC:
26121634
Video Clip:
Product Video Clip
Voltage Rating:
80
Warranty Link:
Warranty Information
Weight:
30/1000 ft. , 31.070 L
