Image may not reflect selected features
No Image
Available
Available
Panduit

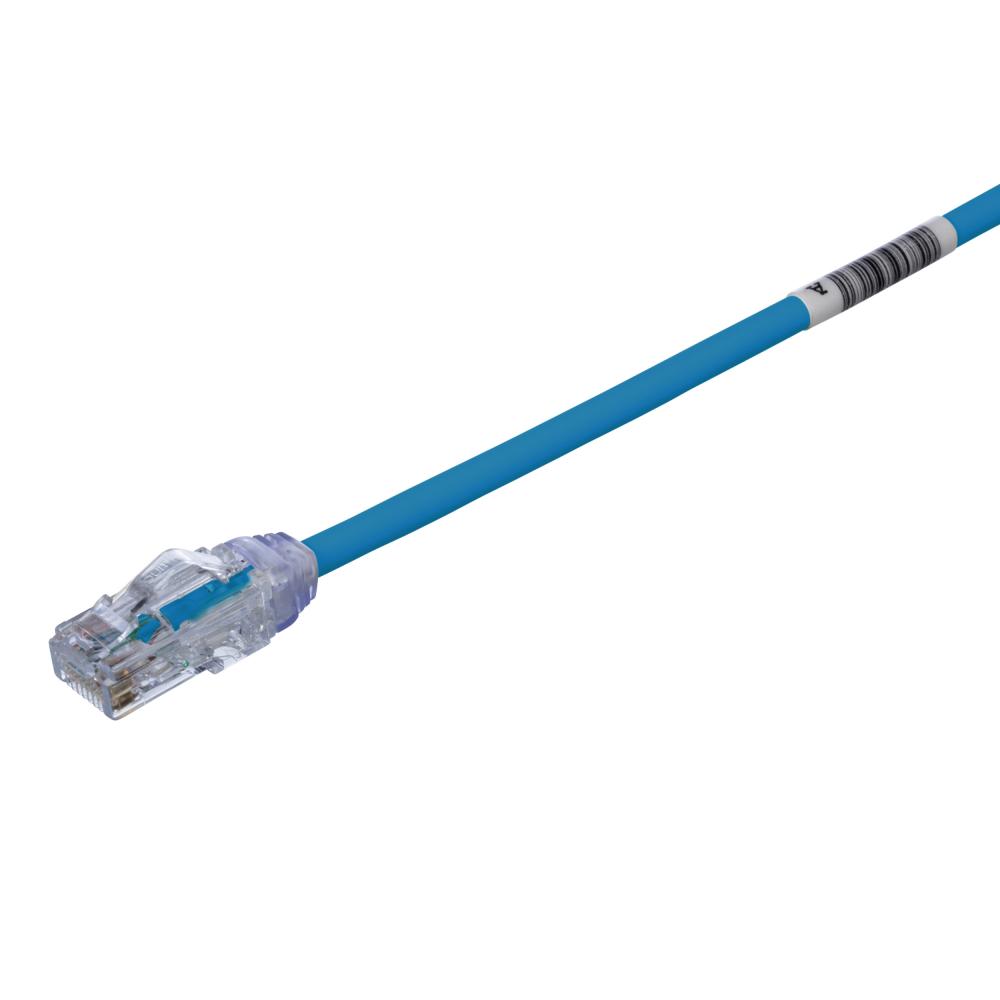

Cat 6A 28 AWG UTP Copper Patch Cord, 15 ft, Blue
Part Number: UTP28X15BU
UPC: 00074983063680
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
The TX6A-28™ Cat 6A UTP Patch Cord is a 15-Foot, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Details
Product Height:
1.30"
Product Width:
8.55"
Product Length:
9.00"
Electrical Category:
Data Networking And Wireless
Electrical Subcategory:
Data And Network Devices And Equipment
Application:
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing.
Boot Type:
Modular Plug
Brand Name:
Panduit®
Brochure:
Color:
Blue
Conductor Material:
Copper
Country Of Origin:
MUL
Eng Drawing Link:
Installation Link:
Jacket Material:
LSZH Material
Length:
15.00
Order Minimum:
10.000 PC
Order Multiple:
1.000 PC
Outside Diameter:
0.18
Plug Type:
Modular Plug
RoHS Compliance:
Yes
Spec Sheet:
Special Features:
NULL
Standard:
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH, Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802
Stock Type:
Shelf Stock
Sub Brand:
Pan-Net®
Tech Bulletin Link:
Tech Drawing Link:
Temperature Rating:
167
Type:
Patch Cord
UNSPSC:
43223303
Video Clip:
Weight:
.270 L
Wire Size:
28
