200A 5T RT OH MAIN 13519

Milbank

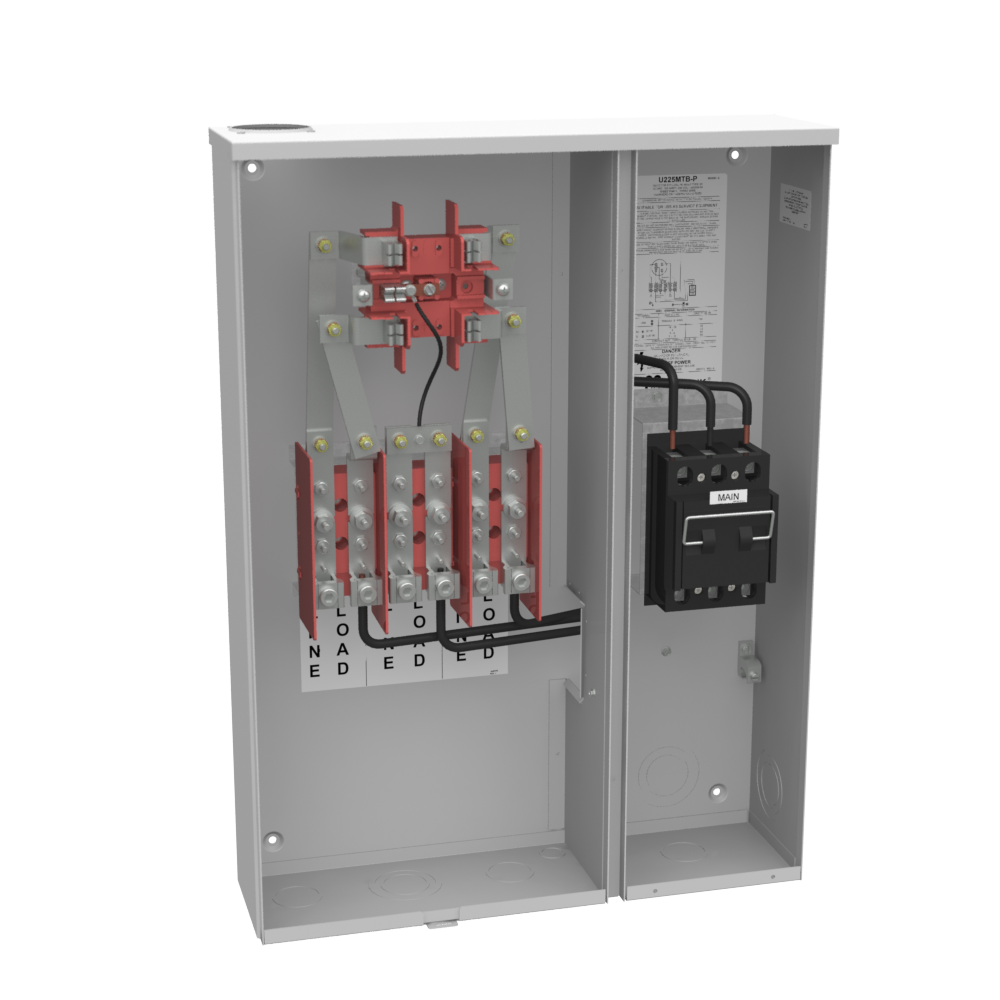

200A 5T RT OH MAIN 13519

Part Number: U225MTB-P
UPC: 00784572135192
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
5 TERM RNGTP 2 SML CLS PLT LNK BYPS 1-200 AMP MN PULLOUT UG
Specifications
Details
Product Height:
30.00"
Product Width:
22.13"
Product Length:
6.00"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Distribution and Control Centers
Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Type:
Link Bypass
Cable Entry:
Overhead or Underground
Country Of Origin:
USA
Cutout Size:
One 200 Ampere Main Fuse Pull Out Switch
Enclosure:
G90 Galvanized Steel with Powder Coat Finish
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Opening:
Twin Small Closing Plates
Installation Link:
Installation Instructions
Insulation:
Fiberglass with Resin
Jaw Quantity:
5 Terminal
Line Side Wire Range:
6 AWG - 250 kcmil
Load Side Wire Range:
1 AWG - 300 kcmil
Mounting:
Surface Mount
Number Of Cutouts:
1
Number of Meter Positions:
1 Position
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3 Phase
RoHS Compliance:
Contact Manufacturer
Size:
6L x 22.125W x 30H
Spec Sheet:
Spec Link
Standard:
UL Listed;Type 3R
Terminal:
Single Mechanical
Type:
Ring Type Meter Socket
UNSPSC:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Warranty Link:
Warranty Information
Weight:
60.000 L
