200A 4T RL 6P CTR WY 13391

Milbank
200A 4T RL 6P CTR WY 13391

Part Number: U1256-X-KK-PED
UPC: 00784572133914
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

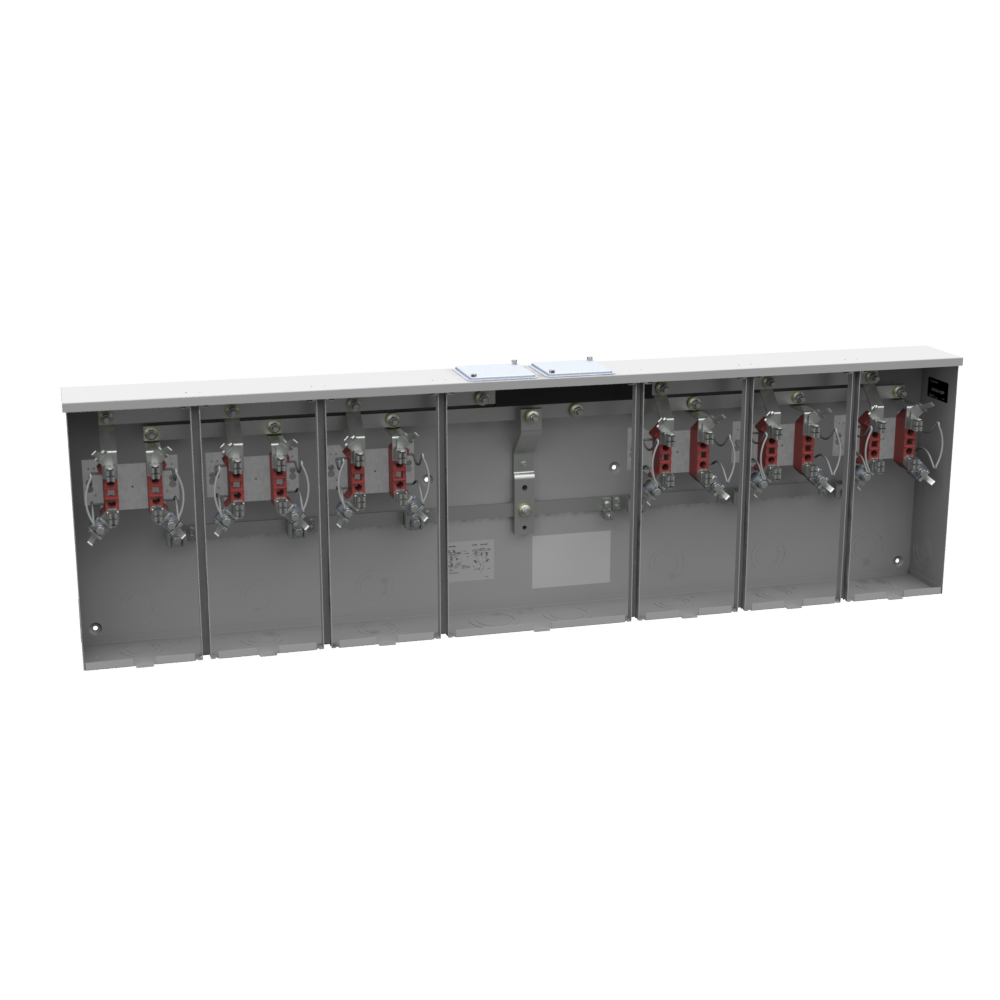

4 TERM RNGLS LRG CLS PLT HRN BYPS 6 POS PED MNT PROV
Specifications
Details
Product Height:
18.00"
Product Width:
62.88"
Product Length:
5.13"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Distribution and Control Centers
Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Type:
Horn Bypass
Cable Entry:
Overhead or Underground with Center Wireway
Country Of Origin:
USA
Cutout Size:
No Main Breaker
Enclosure:
G90 Galvanized Steel with Powder Coat Finish
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Opening:
Large Closing Plate
Installation Link:
Installation Instructions
Insulation:
Glass Polyester
Jaw Quantity:
4 Terminal
Load Side Wire Range:
6 AWG - 350 kcmil
Mounting:
Surface Mount
Number Of Cutouts:
0
Number of Meter Positions:
6 Positions
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 Phase
RoHS Compliance:
Contact Manufacturer
Size:
5.125L x 62.875W x 18H
Spec Sheet:
Spec Link
Standard:
UL Listed;Type 3R
Stock Type:
Shelf Stock
Terminal:
3/8 Inch Stud
Type:
Ringless Meter Socket
UNSPSC:
39121102
Voltage Rating:
300 Volts Alternating Current
Warranty Link:
Warranty Information
Weight:
80.000 L
