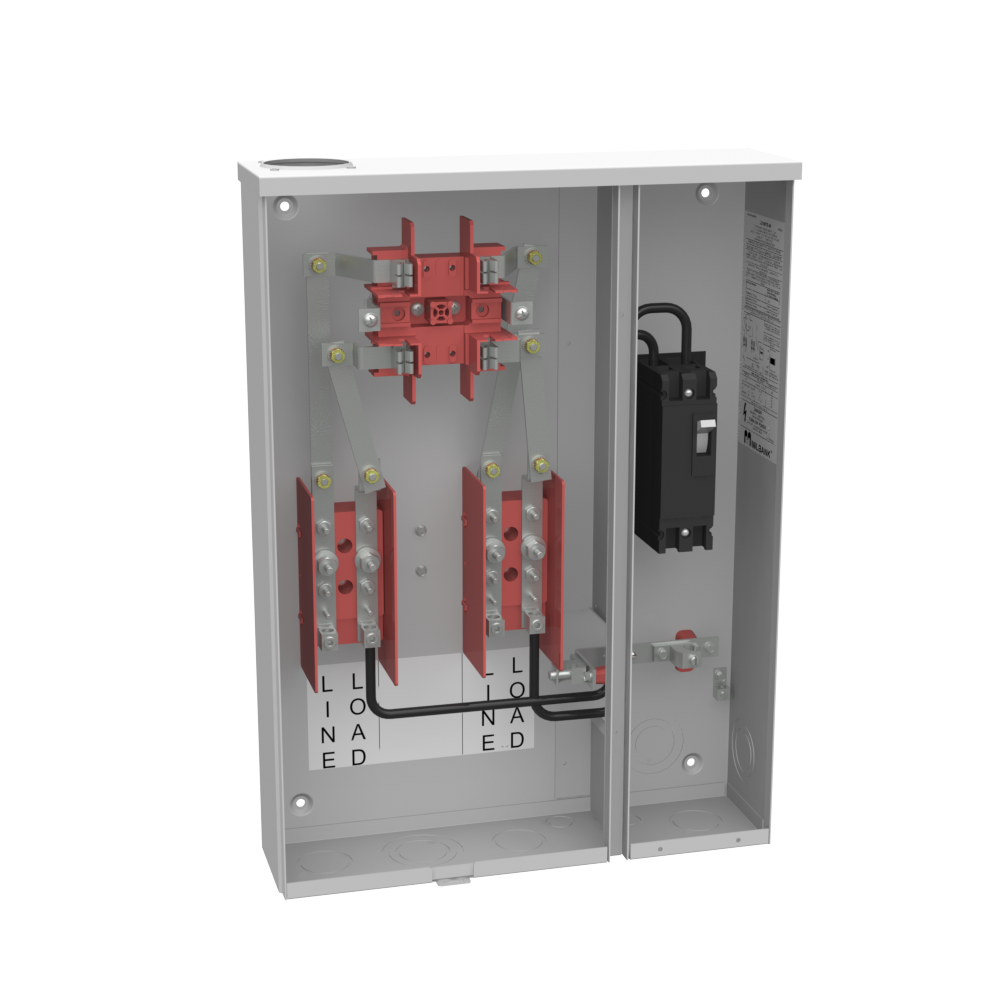

1P 3W 4T CMS 100A MN 480V 13478

Milbank
1P 3W 4T CMS 100A MN 480V 13478

Part Number: U214MTB-48
UPC: 00784572134782
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
4 TERM RNGTP SML CLS PLT LNK BYPS 1-100 AMP MN BRKR 480V RATING
Specifications
Details
Product Height:
24.75"
Product Width:
18.13"
Product Length:
4.63"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Distribution and Control Centers
Amperage Rating:
100 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Type:
Link Bypass
Cable Entry:
Overhead or Underground
Country Of Origin:
USA
Cutout Size:
One 100 Ampere Main Breaker
Enclosure:
G90 Galvanized Steel with Powder Coat Finish
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Opening:
Twin Small Closing Plates
Installation Link:
Installation Instructions
Insulation:
Fiberglass with Resin
Jaw Quantity:
4 Terminal
Line Side Wire Range:
14 AWG - 1/0
Load Side Wire Range:
6 AWG - 350 kcmil
Mounting:
Surface Mount
Number Of Cutouts:
1
Number of Meter Positions:
1 Position
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 Phase
RoHS Compliance:
Contact Manufacturer
Size:
4.625L x 18.125W x 24.75H
Spec Sheet:
Spec Link
Standard:
UL Listed;Type 3R
Terminal:
Single Mechanical
Type:
Ring Type Meter Socket
UNSPSC:
39121102
Voltage Rating:
Up to 480 Volts Alternating Current
Warranty Link:
Warranty Information
Weight:
37.000 L
