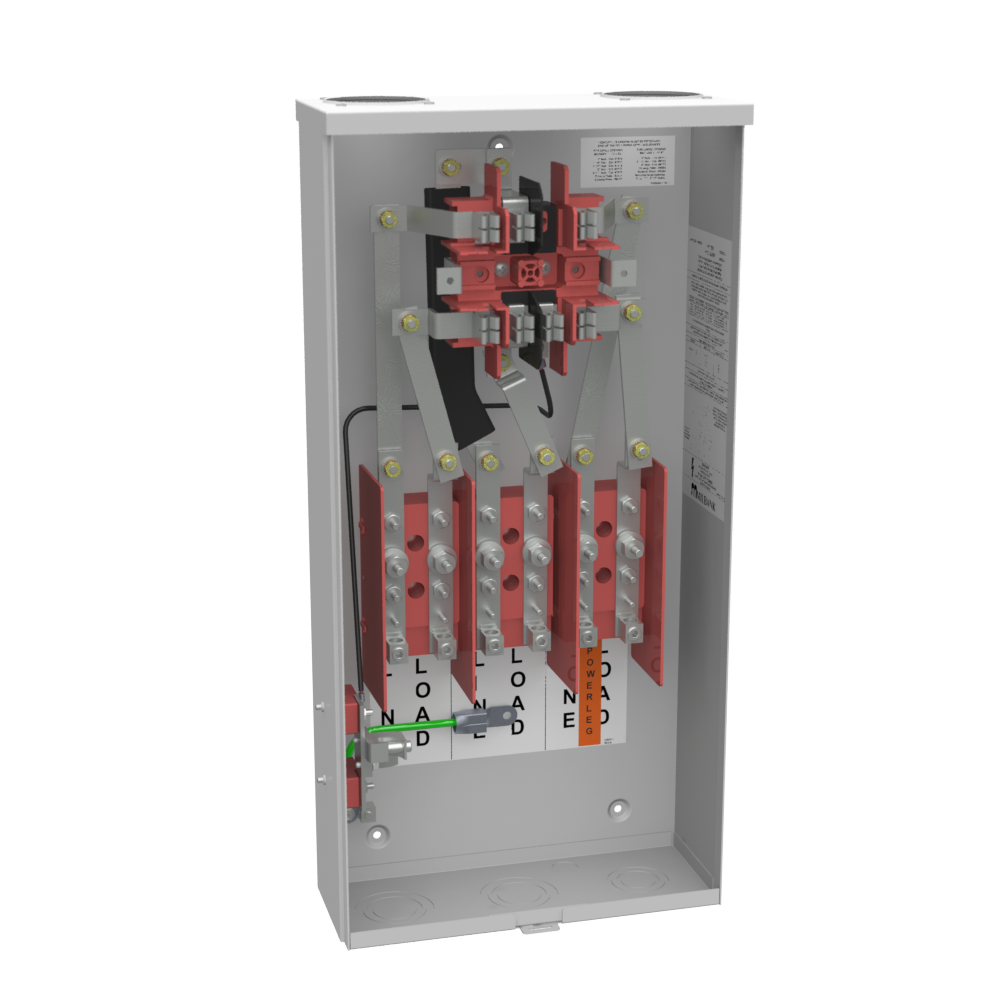

100A 7T RT OU 10096

Milbank
100A 7T RT OU 10096

Part Number: 117TB
UPC: 00784572100961
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
7 TERM RNGTP 2 SML CLS PLT LNK BYPS 100 AMP
Specifications
Details
Product Height:
24.75"
Product Width:
12.13"
Product Length:
4.62"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Distribution and Control Centers
Amperage Rating:
100 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Type:
Link Bypass
Cable Entry:
Overhead or Underground
Country Of Origin:
USA
Cutout Size:
No Main Breaker
Enclosure:
G90 Galvanized Steel with Powder Coat Finish
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Opening:
Twin Small Closing Plates
Installation Link:
Installation Instructions
Insulation:
Fiberglass with Resin
Jaw Quantity:
7 Terminal
Line Side Wire Range:
14 - 2/0 AWG
Load Side Wire Range:
14 - 2/0 AWG
Mounting:
Surface Mount
Number Of Cutouts:
0
Number of Meter Positions:
1 Position
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3 Phase
RoHS Compliance:
Contact Manufacturer
Size:
4.62L x 12.125W x 24.75H
Spec Sheet:
Spec Link
Standard:
UL Listed;Type 3R
Stock Type:
Shelf Stock
Terminal:
Single Mechanical
Type:
Ring Type Meter Socket
UNSPSC:
39121102
Voltage Rating:
Up to 600 Volts Alternating Current
Warranty Link:
Warranty Information
Weight:
25.000 L
