MPDB Series UL 1953 1000V - 380A CU INT Adder 1

Mersen

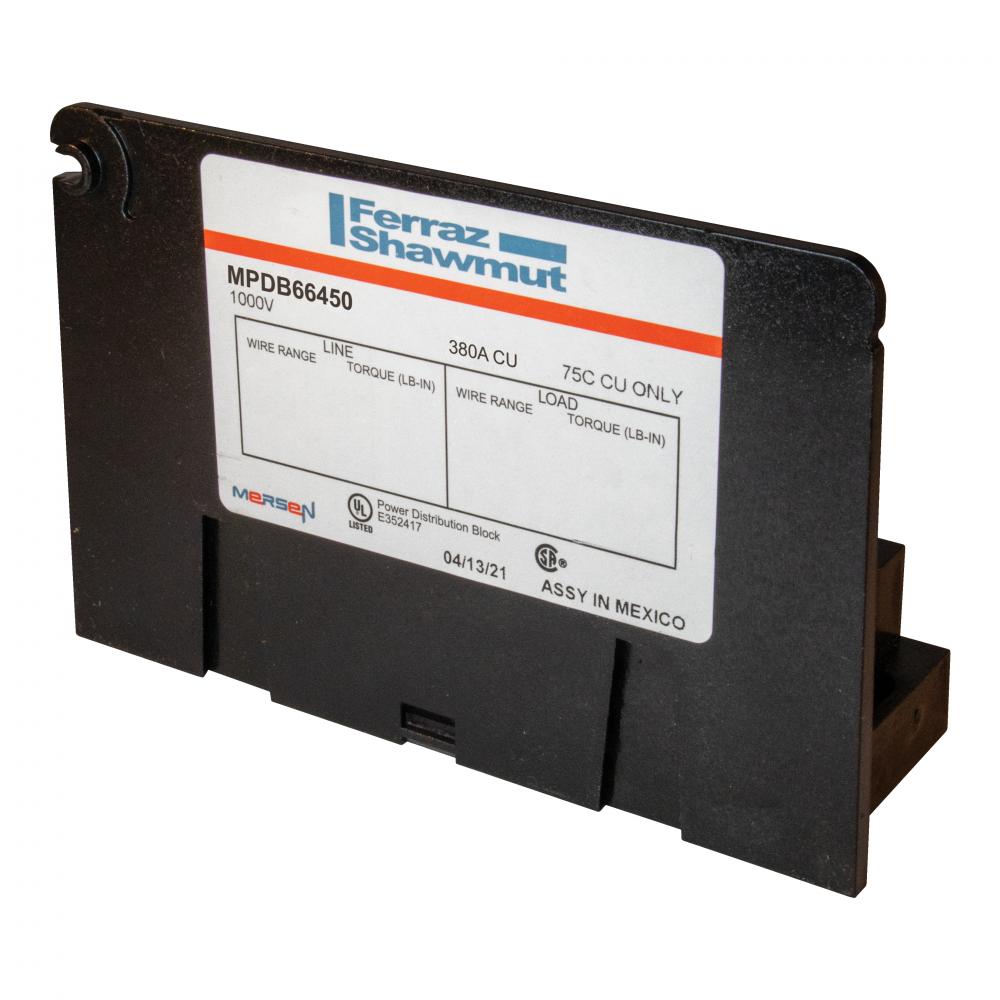

MPDB Series UL 1953 1000V - 380A CU INT Adder 1

Part Number: MPDB66450
UPC: 00782001454272
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Open-Style PDB UL 1953 1000V Tin-plated Copper - 380A Adder 1 - 4 openings; 500-#4 --- 350-#6-#2-#14 Box to Box
Specifications
Details
Product Height:
3.25"
Product Width:
1.72"
Product Length:
3.08"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Amperage Rating:
380
Application:
Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points.
Brand Name:
Mersen
Connection:
Box To Box
Country Of Origin:
MX
Material:
Tin-plated Copper
Mounting:
Direct Screw Mount
Number Of Terminals:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
3.08 x 1.72 x 3.25
Spec Sheet:
Spec Link
Special Features:
Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combina
Standard:
UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01
Stock Type:
Configured on order
Type:
Open-Style Power Distribution Blocks
UNSPSC:
39121410
Voltage Rating:
1000
Weight:
1.100 lb
