MPDB Series UL 1953 1000V - 310A CU Large 3-Pole

Mersen

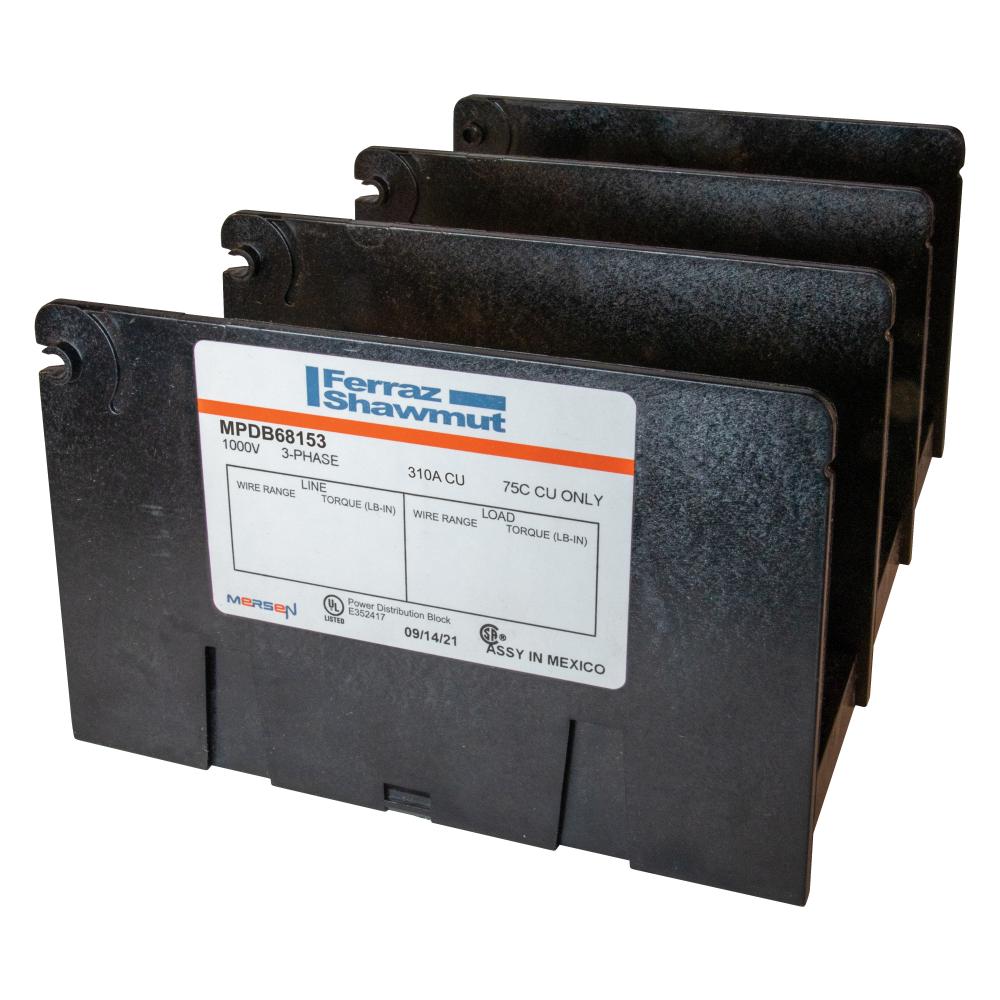

MPDB Series UL 1953 1000V - 310A CU Large 3-Pole

Part Number: MPDB68153
UPC: 00782001455293
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Open-Style PDB UL 1953 1000V Tin-plated Copper - 310A 3-Pole 1 - 12 openings; 350-#6 --- #4-#14 Box to Box
Specifications
Details
Product Height:
3.55"
Product Width:
7.89"
Product Length:
5.70"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Terminals And Accessories
Amperage Rating:
310
Application:
Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points.
Brand Name:
Mersen
Connection:
Box To Box
Country Of Origin:
MX
Material:
Tin-plated Copper
Mounting:
Direct Screw Mount
Number Of Terminals:
3-pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
5.7 x 7.89 x 3.55
Spec Sheet:
Spec Link
Special Features:
Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combina
Standard:
UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01
Stock Type:
Configured on order
Type:
Open-Style Power Distribution Blocks
UNSPSC:
39121410
Voltage Rating:
1000
Weight:
10.600 lb
