Image may not reflect selected features
No Image
Available
Available
Mersen

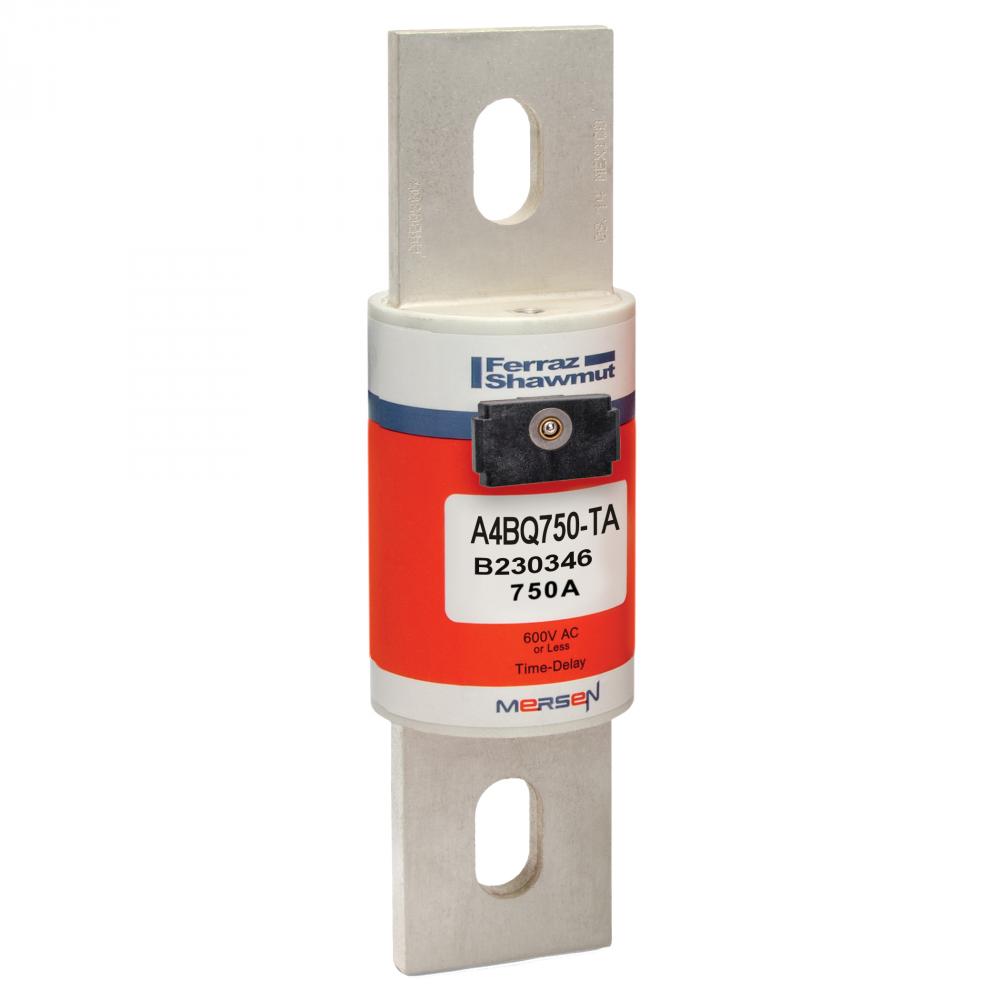

Fuse A4BQ - Class L - Time-Delay 600VAC 500VDC 7
Part Number: A4BQ750-TA
UPC: 00782001294014
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Fuse A4BQ - Class L - Time-Delay 600VAC 500VDC 750A Blade TA Indicator Amp-Trap 2000®
Specifications
Details
Product Height:
2.00"
Product Width:
2.00"
Product Length:
8.63"
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Amperage Rating:
750
Application:
Mains Feeders Large motors Lighting, heating & general loads Circuit breaker back-up DC rated: UPS DC links, battery disconnects, other DC applications
Brand Name:
Mersen
Class:
Class L
Connection:
Blade
Country Of Origin:
MX
Interrupt Rating:
200
Mounting:
Bolted
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
8.63 x 2
Spec Sheet:
Special Features:
Fastest operation under short circuit conditions: Let-thru currents are typically 20 percent lower, with a corresponding let-thru energy (clearing I2t) up to 40 lower than the next fastest Class L fuse Time-delay for high inrush loads such as motors and tr
Standard:
A4BQ (100-6000) UL listed to standard 248-10 File E2137 DC listed to UL standard 248 (100-2000A) CSA certified to standard C22.2 No. 248.10 (601-6000A) A4BQ (100-6000) - TA UL listed
Stock Type:
Configured on order
Sub Brand:
Amp-Trap 2000®
Type:
Class L
Type Of Indicators:
TA Indicator
UNSPSC:
39121627
Voltage Rating:
600
Weight:
3.890 lb
