Image may not reflect selected features
No Image
Available
Available
Legrand-Pass & Seymour

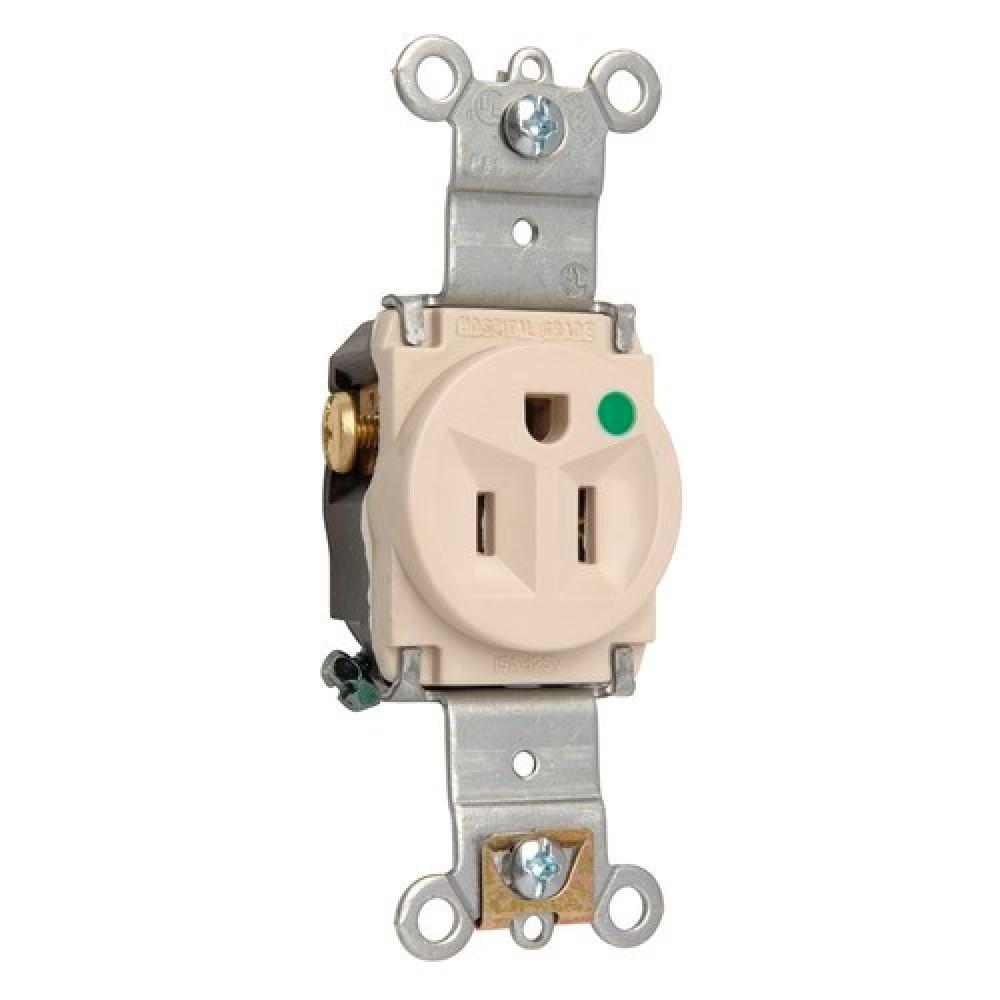

HOSP GRD SGL RECEPT 15A 125V LA
Part Number: 8201LA
UPC: 00785007091007
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Product Overview
Heavy-Duty Hospital Grade Single Receptacle, Back and, Side Wire, 15amp 125volt, Light Almond
Specifications
Details
Product Height:
4.38"
Product Width:
1.38"
Product Length:
1.94"
Electrical Category:
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
, Receptacle
Amperage Rating:
15
Application:
Commercial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Color:
Light Almond
Connection:
Back and side wire
Country Of Origin:
MX
Dielectric Strength:
Withstands 2000V minimum
Environmental Conditions:
Flammability: UL94 V2
Lead Time:
5.000 DW
Material:
Nylon
Mounting:
Wall
NEMA Rating:
5-15R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1.32 L x 1.093 W x 3.68 H
Spec Sheet:
Special Features:
Heavy-duty, zinc-plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Impact-resistant nylon face and thermoplastic back body. Internal
Standard:
UL498, cUL/CSA C22.2 No. 42
Sub Brand:
Pass & Seymour
Temperature Rating:
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Type:
Hospital Grade Single Receptacle, Heavy-Duty
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
Electrical power is expressed in Amps and Volts.
Weight:
.169 L
Wire Size:
#14 - #10
