Image may not reflect selected features
No Image
Available
Available
Legrand-Pass & Seymour

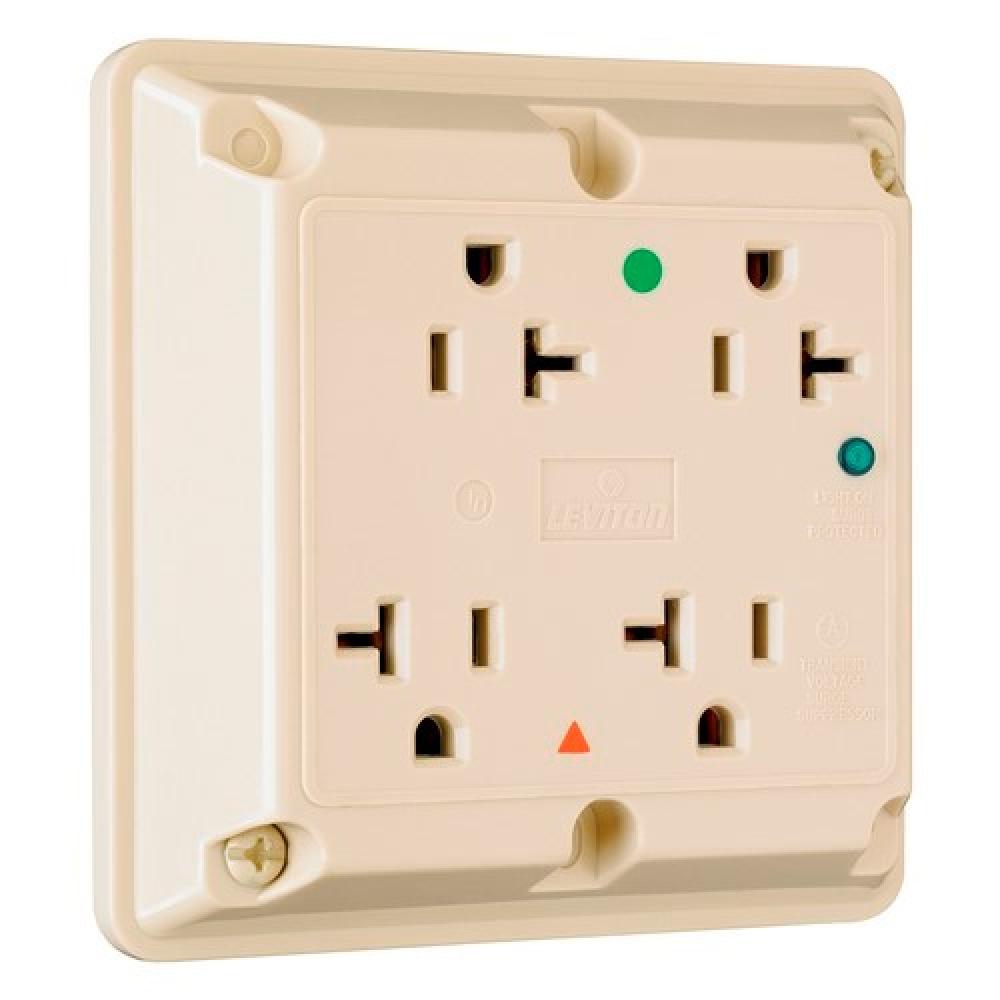

HG IG TVSS QUAD RECEPT 20A 125V IV
Part Number: IG420HISP
UPC: 00785007125740
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Isolated Ground Hospital Grade TVSS Quad Receptacle, 20amp 125volt, Ivory
Specifications
Details
Product Height:
4.63"
Product Width:
1.88"
Product Length:
4.63"
Electrical Category:
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
, Receptacle
Amperage Rating:
20
Application:
Commercial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Color:
Ivory
Country Of Origin:
MX
Environmental Conditions:
Flammability: UL94 V2 and UL94-5 VA
Lead Time:
7.000 DW
Material:
Nylon
Mounting:
Wall
NEMA Rating:
5-20R
Number Of Poles:
2
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
4.50 L x 1.151 W x 4.50 H
Spec Sheet:
Special Features:
Green LED Indication: ON when protection is active, OFF when protection is inactive. IG symbol and Isolated Ground markings for easy identification and circuit delineation. Rugged nylon face and body withstands impacts and hard use. Built-in wire stripping
Standard:
UL1449, UL498; ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
Stock Type:
Configured on order
Sub Brand:
Pass & Seymour
Temperature Rating:
Operating Temperature: -40°C to +65°C (-40°F to 150°F) continuous without impact
Type:
Surge Protective Isolated Ground Hospital Grade Quad Receptacle
UNSPSC:
39121406
Video Clip:
Voltage Rating:
125
Warranty Link:
Wattage:
Electrical power is expressed in Amps and Volts.
Weight:
.607 L
Wire Size:
#14 - #12
