Image may not reflect selected features
No Image
Available
Available
Legrand-Pass & Seymour

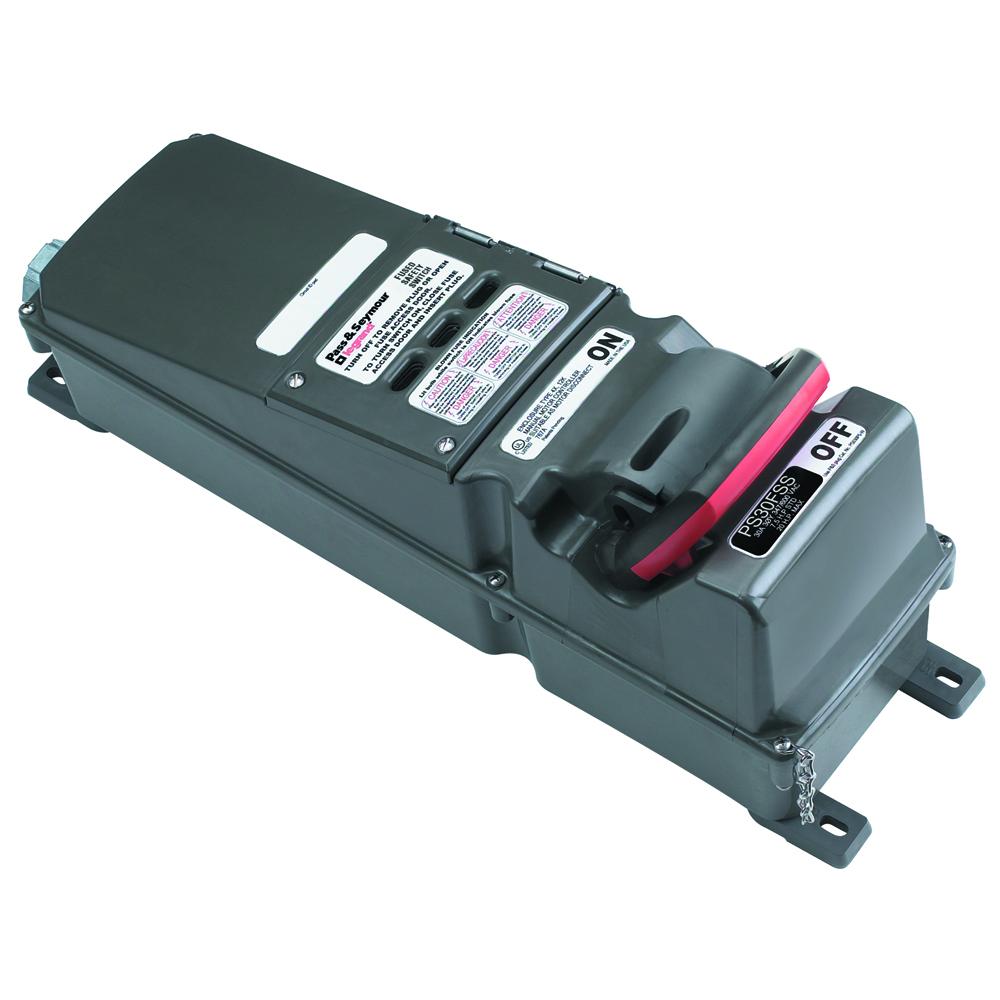

30A 600VAC FUSIBLE SAFETY SWITCH
Part Number: PS30FSS
UPC: 00785007101010
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Product Overview
Fusible Safety Switch. 30 amp, 600 vac.
Specifications
Details
Product Height:
4.50"
Product Width:
4.13"
Product Length:
7.44"
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Action:
Motor Disconnect Switch with Blown Fuse Indicator
Actuator:
Switch Handle
Amperage Rating:
30
Application:
Industrial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Connection:
Hard Wired
Contact Configuration:
1 N.O. & 1 N.C.
Contact Rating:
10A @ 600VAC
Country Of Origin:
US
Enclosure:
NEMA Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt); IP67 Suitability
Environmental Conditions:
Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability; Flammability: UL94 5VA and VO Classification; UV Resistance: All enclosure materials are UV stable
Frequency Rating:
60
Installation Link:
Insulation:
Complies with NEMA 4X
Lead Time:
5.000 DW
Material:
Valox 357®
Mounting:
External adjustable feet with five (5) positions. Can be mounted directly to channel or strut (no washers required).
Number Of Poles:
4
Operating Cycles:
Mechanical: 15,000 Cycles; Electrical: 10,000 Cycles
Operating Temperature:
Maximum continuous: +60C; Minimum continuous: -50C without impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
9.13 L x 10.09 W x 22.59 H
Spec Sheet:
Special Features:
Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage. Corrosion-resistant, stainless steel captive screws speeds installation, minimize risk of lost parts, and withstand abuse. Captive,
Standard:
UL, CSA
Sub Brand:
Pass & Seymour
Type:
Fusible Safety Switch
UNSPSC:
39122205
Voltage Rating:
600
Warranty Link:
Weight:
13.050 L
