Jet - US

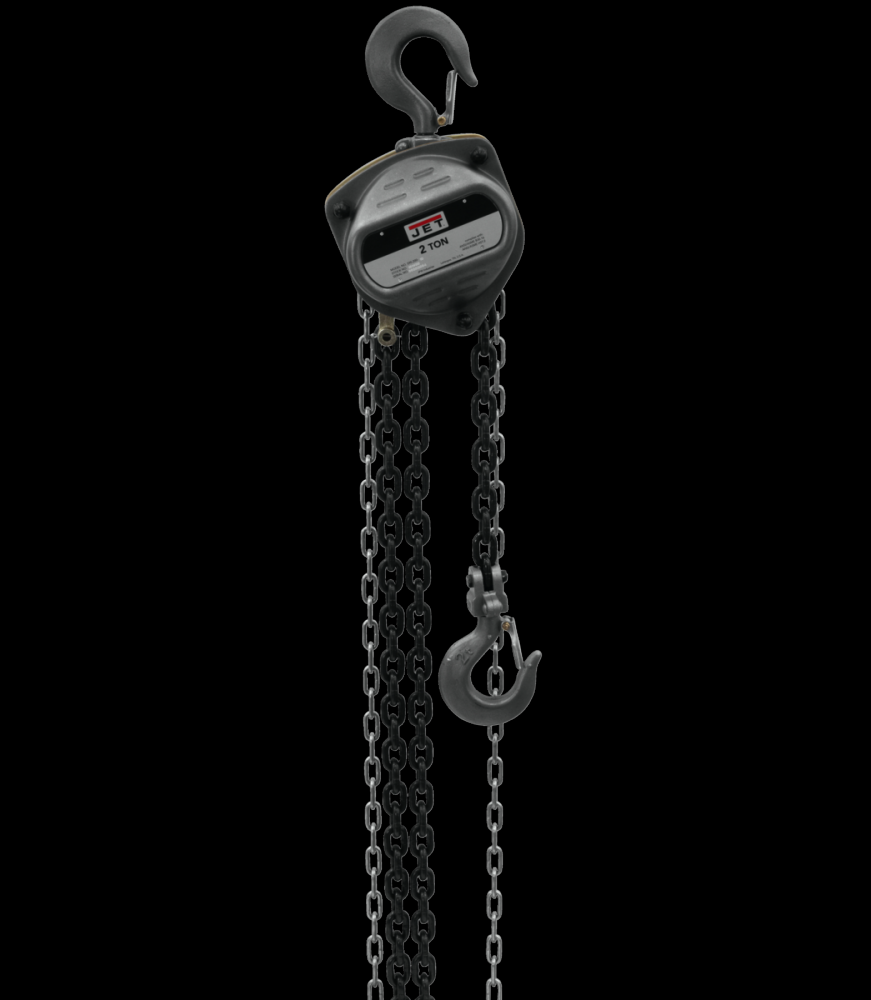

S90-200-10 2T CHN HST 10' LIFT
Part Number: 101930
UPC: 00731325218916
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
4400
Capacity (Lbs.) (Unit):
Pound
Configurable Base Item:
No
Country of Origin:
China
Hand Chain To Lift Load 1 ft.:
71
Headroom (In.) - TS_14:
17-1/2
Item Height (inches):
8.5
Item Length (inches):
15
Item Weight (lbs):
43
Item Width (inches):
11
Lbs. of Pull to Lift Capacity:
91
Lift (Ft.):
10
Lift (Ft.) (Unit):
Feet
Load Capacity (Tons):
2
Load Chain Dimensions dia/mm):
8 X 24
Overload Protection:
No
Prop 65:
Cancer and Reproductive Harm
Warranty:
Lifetime
Other Details
- Grade 80 black oxide coated load chain for added durability
- Heat Treated Load Plates
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- The smaller body and lightweight design are ideal for confined areas and low headroom applications
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
