MT050-4 1/2T ELECTRIC TROLLEY 460V

Jet - US
MT050-4 1/2T ELECTRIC TROLLEY 460V

Part Number: 144183
UPC: 00731325880076
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

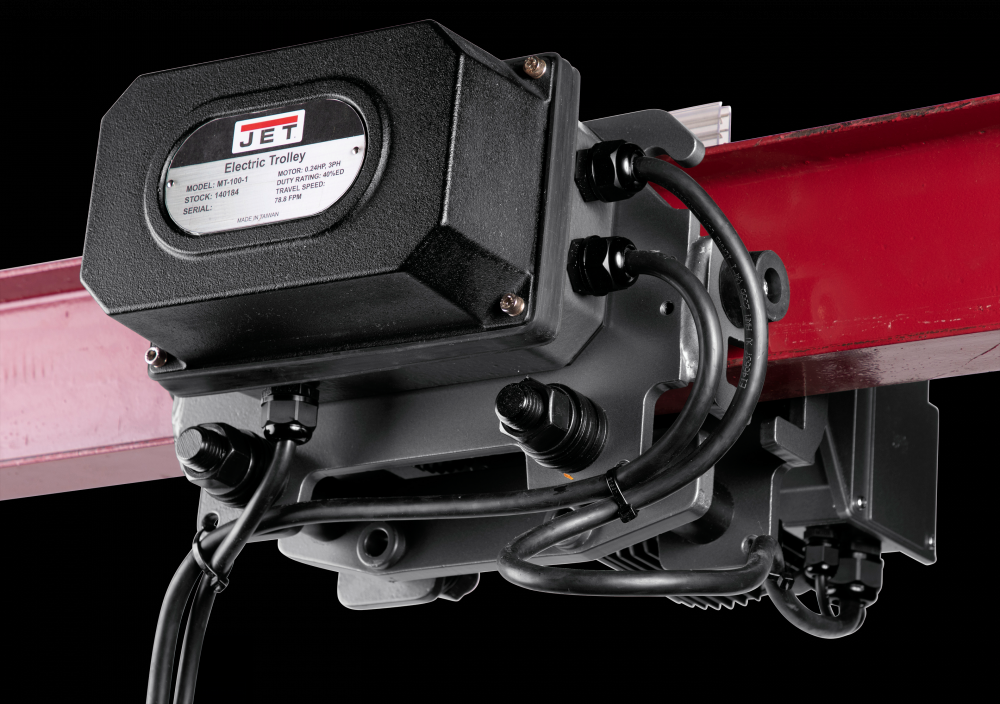

JET® MT Series Electric Trolley is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. All of this with safe travel speeds up to 79 feet per minute and as low as 20 feet per minute to give you the ability to be more efficient with every load. The MT series is available from 1/2 Ton to 5 Ton capacities. Let’s Get to Work.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
1100
Capacity (Lbs.) (Unit):
Pound
Country of Origin:
Taiwan
Item Height (inches):
17.717
Item Length (inches):
27.559
Item Weight (lbs):
143
Item Width (inches):
19.685
Load Capacity (Tons):
2-Jan
Maximum Beam Flange Width (In.):
5
Minimum Beam Curve Radius (In.):
51.2
Minimum Beam Flange Width (In.):
3
Motor (HP):
0.04 / 0.16
Motor Phase:
3
Motor Voltage (V.):
460
Prop 65:
Cancer and Reproductive Harm
Travel Speed - High (FPM):
79
Travel Speed - Low (FPM):
20
Warranty:
2 Year
Wheel Diameter (In.):
8-Jul
Wheel to Hook Mount (in.):
3.7
Other Details
  • Expanded flange capacity kits are available
  • Heavy-Duty motor puts out up to 0.8HP making it the strongest in it's class
  • Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
  • TAA Approved
  • Two speeds reduces bump firing to while still allowing high speed movement of materials
