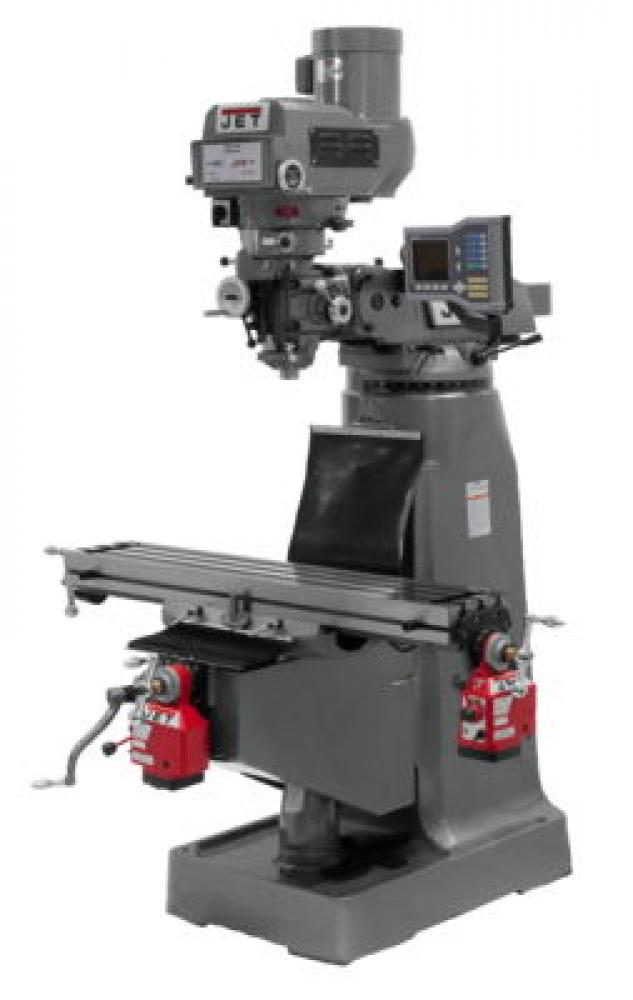

JTM-4VS-1 W/X & Y TPFA

Jet - US
JTM-4VS-1 W/X & Y TPFA

Part Number: JT9-690197
UPC:
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Machinery
Industrial Subtype:
Milling Machines
Base Unit of Measure:
IN
BOM Products:
JT9-350194,JT9-350195,JT9-690180
Collet Capacity:
1/8 - 7/8
Configurable Base Item:
No
Distance Spindle to Column (Max.) (In.):
19
Enabled:
Yes
End User Sellable:
No
Family:
Mills
Item Display Order:
47
Item Weight (lbs):
2600
Magento Website Mapping:
JET Parts
Max Distance Spindle to Table (In.):
17-1/2
Model Number:
JTM-4VS-1
Motor (HP):
2 HP, 115/230V, 1Ph
Old Item Number:
690197
Overall Dimensions (L x W / in.):
66 x 63 x 85
Powerfeed:
X and Y-Axis
Prop 65:
Cancer and Reproductive Harm
Quill Diameter (In.):
3-3/8
Quill Down Feed Rates (IPR):
.0015 - .003 - .006
Range of Spindle Speeds (RPM):
60 - 4,200
Ready for Web:
Yes
Spindle Taper (In. x TPI):
R-8
Spindle Travel (In.):
5
Style (Type):
Variable Speed R8
T-Slot Centers (In.):
2-1/2
Table Cross Travel (In.):
12
Table Longitudinal Travel (In.):
34
Table Longitudinal Travel With Powerfeed (In.):
28-3/4
Table Size (L x W) (In.):
9 x 49
Transportation:
DOCK DEL ONLY
Travel of Knee (In.):
14-1/2
Travel of Ram (In.):
13-3/8
UPC:
731325173550
Weight (Lbs.):
2420
Weight (Lbs.) (Unit):
Pound
Work Table Weight Capacity (Lbs.):
660
Other Details
  • Adjustable gibs throughout
  • Heavy duty splined motor drive
  • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
  • Large diameter quill is chromed
  • One shot lubrication system
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Tolerance test sheet included
