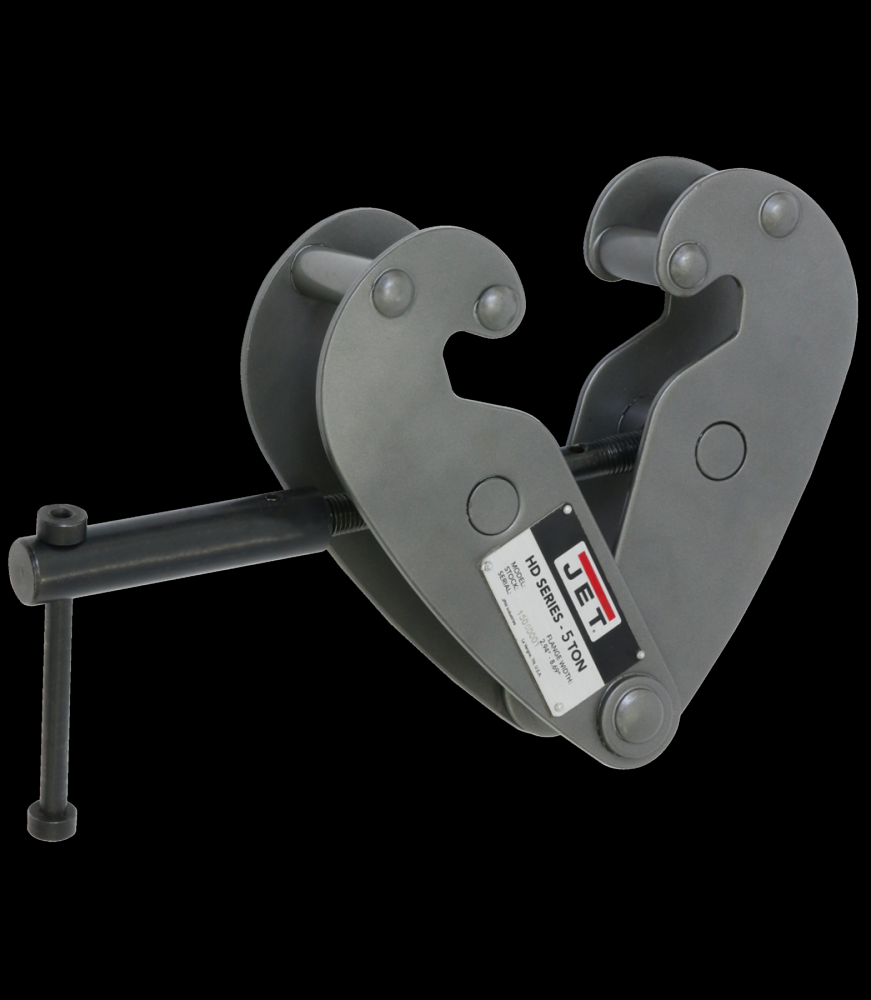

HD-5T 5T BEAM CLAMP

Jet - US
HD-5T 5T BEAM CLAMP

Part Number: 202750
UPC: 00662755898037
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.
Specifications
Details
Industrial Category:
Safety
Industrial Subcategory:
Fall Protection
Capacity (Lbs.):
11000
Capacity (Lbs.) (Unit):
Pound
Configurable Base Item:
No
Country of Origin:
China
Item Height (inches):
8.66
Item Length (inches):
21.65
Item Weight (lbs):
24.5
Item Width (inches):
5.91
Load Capacity (Metric Tons):
5
Load Capacity (Metric Tons) (Unit):
Ton
Load Capacity (Tons):
5
Maximum Beam Flange Width (In.):
12/3/2005
Minimum Beam Flange Width (In.):
3/1/2007
Prop 65:
Cancer and Reproductive Harm
Warranty:
2 Year
Other Details
  • Clamp jaw is designed to distribute the load away from the beam flange edge
  • Clamp jaw is designed to distribute the load away from the beam flange edge, increasing safety
  • Complies with ANSI / ASME B30.17 and B30.20 standards
  • Load tested to 125% of capacity with certificate
  • Used for quick mounting of a hoist on a broad range of beams up to 12-3/5 inches wide for increased versatility
  • Welded all-steel frame and powder coat finish
  • Welded all-steel frame and powder coat finish provide maximum durability and protection
