BLVS100-020 1T ELEC HST 20' LIFT 1 PH

Jet - US
BLVS100-020 1T ELEC HST 20' LIFT 1 PH

Part Number: 104035
UPC: 00731325854558
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

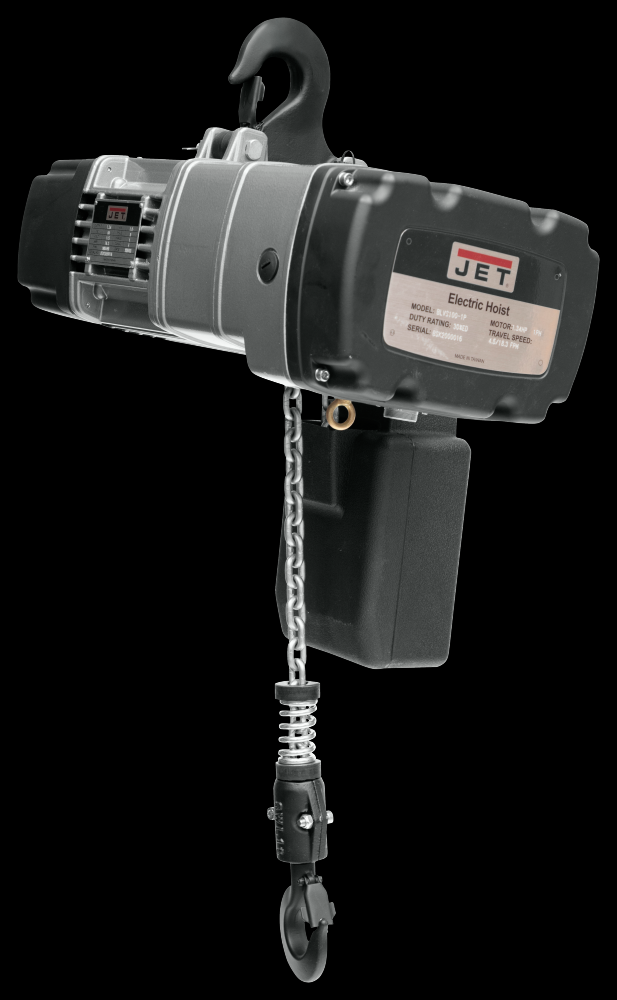

JET Trademaster® Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
2200
Capacity (Lbs.) (Unit):
Pound
Country of Origin:
Taiwan
Duty Cycle (%):
30
Duty Cycle Rating:
H3
Headroom (in.):
20-3/4
Headroom (In.) - TS_14:
20-3/4
Item Height (inches):
23.6
Item Length (inches):
26.8
Item Weight (lbs):
183
Item Width (inches):
19.7
Lift (Ft.):
20
Lift (Ft.) (Unit):
Feet
Lifting Speed (FPM):
0 -4 / 18
Load Capacity (Tons):
1
Max. Number of Starts (Per Hr.):
180
Max. On Time (Min. / Hr.):
30/7.5
Motor (HP):
1.33HP, 110V 60Hz
Motor Current (Amps):
15
Motor Phase:
Single
Motor Voltage (V.):
120
Overall Width (In.):
15-3/10
Overload Protection:
Yes
Prop 65:
Cancer
Warranty:
2 Year
Other Details
  • 30 / 7.5 Time ratings
  • Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
  • DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
  • Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
  • Overload protection using slip clutch system to protect hoist from loads over rated capacities
  • Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
  • TAA Approved
