Jet - US

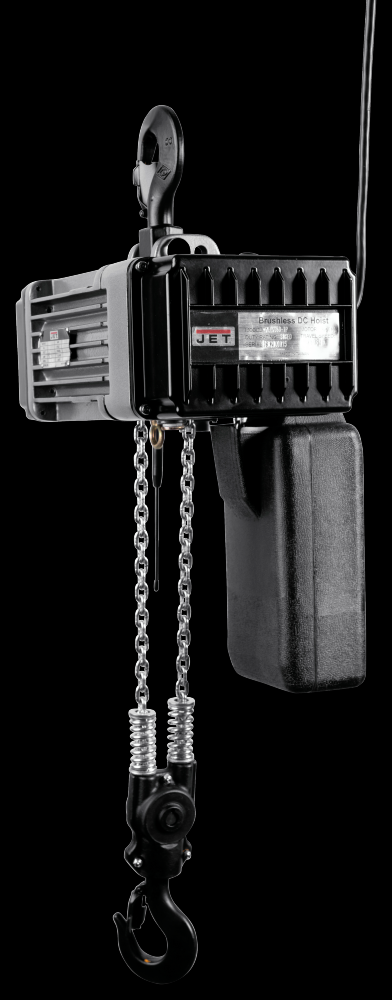

BLVS050-020 1/2T ELEC HST 20' LIFT 1 P
Part Number: 104024
UPC: 00731325854534
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
JET® Trademaster® Series electric hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
1100
Capacity (Lbs.) (Unit):
Pound
Configurable Base Item:
No
Country of Origin:
Taiwan
Duty Cycle (%):
30
Duty Cycle Rating:
H3
Headroom (in.):
19-1/2
Headroom (In.) - TS_14:
19-1/2
Item Height (inches):
23.6
Item Length (inches):
26.8
Item Weight (lbs):
55
Item Width (inches):
19.7
Lift (Ft.):
20
Lift (Ft.) (Unit):
Feet
Lifting Speed (FPM):
0-5 / 21
Load Capacity (Tons):
2-Jan
Max. Number of Starts (Per Hr.):
180
Max. On Time (Min. / Hr.):
30
Motor (HP):
0.8HP, 120V, 1PH
Motor Current (Amps):
10
Motor Phase:
Single
Motor Voltage (V.):
120
Overall Width (In.):
10/1/2002
Overload Protection:
Yes
Prop 65:
Cancer and Reproductive Harm
Warranty:
2 Year
Other Details
- 1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
- 30 / 7.5 Time ratings
- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
- Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
- Low noise at less than 75 dBA
- Overload protection using slip clutch system to protect hoist from loads over rated capacities
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
- TAA Approved
