Image may not reflect selected features
No Image
Available
Available
Jet - US

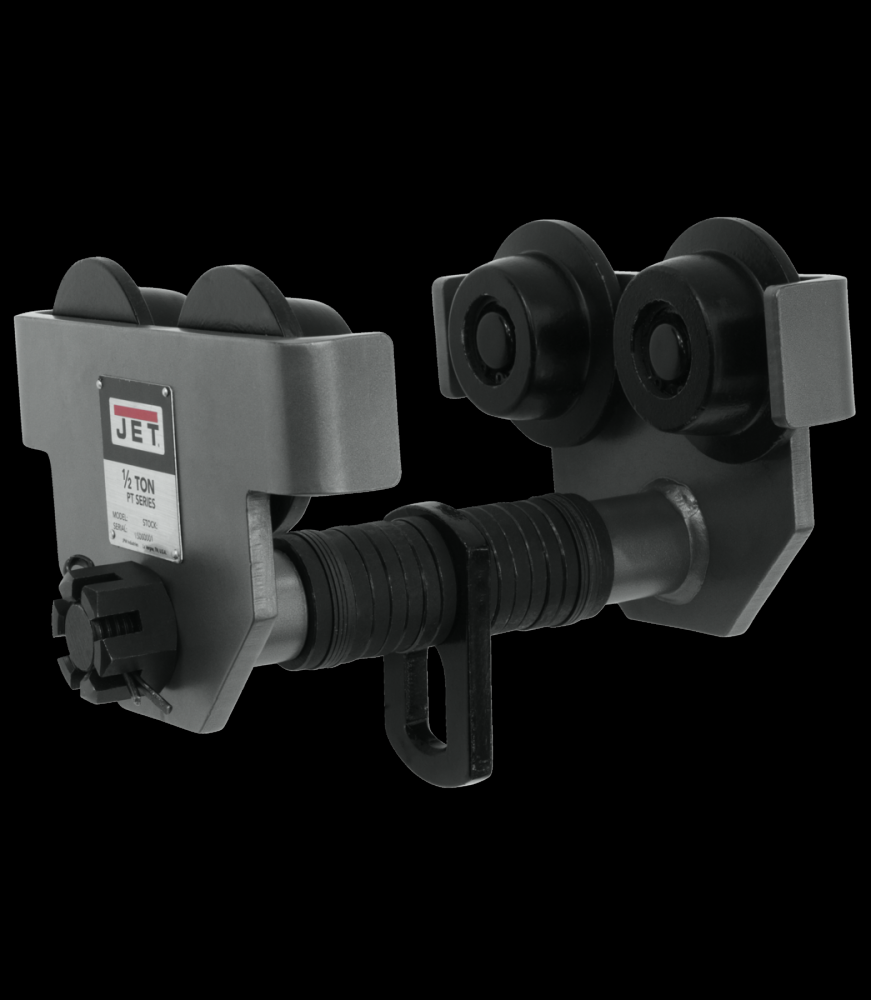

1/2-PT 1/2T HEAVY DUTY MANUAL TROLLEY
Part Number: 252005
UPC: 00662755223273
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
JET® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
1100
Capacity (Lbs.) (Unit):
Pound
Configurable Base Item:
No
Country of Origin:
China
Hook Mount Headroom (In.):
4/4/2009
Item Height (inches):
5.9
Item Length (inches):
12.7
Item Weight (lbs):
18.85
Item Width (inches):
4.2
Load Capacity (Tons):
2-Jan
Max. Hook Size (W/in.):
15/16
Maximum Beam Flange Width (In.):
8
Minimum Beam Curve Radius (In.):
39
Minimum Beam Flange Width (In.):
2/1/2002
Minimum Beam Height (In.):
4
Minimum Beam Height (In.) (Unit):
Inch
Minimum Beam Height (In.) - Min_Beam:
4
Overall Dimensions (L x W x H / in.):
8-1/3 x 12-2/7 x 5-1/8
Prop 65:
Cancer and Reproductive Harm
Warranty:
2 Year
Wheel Diameter (In.):
2/2/2007
Other Details
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
- Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
- Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
