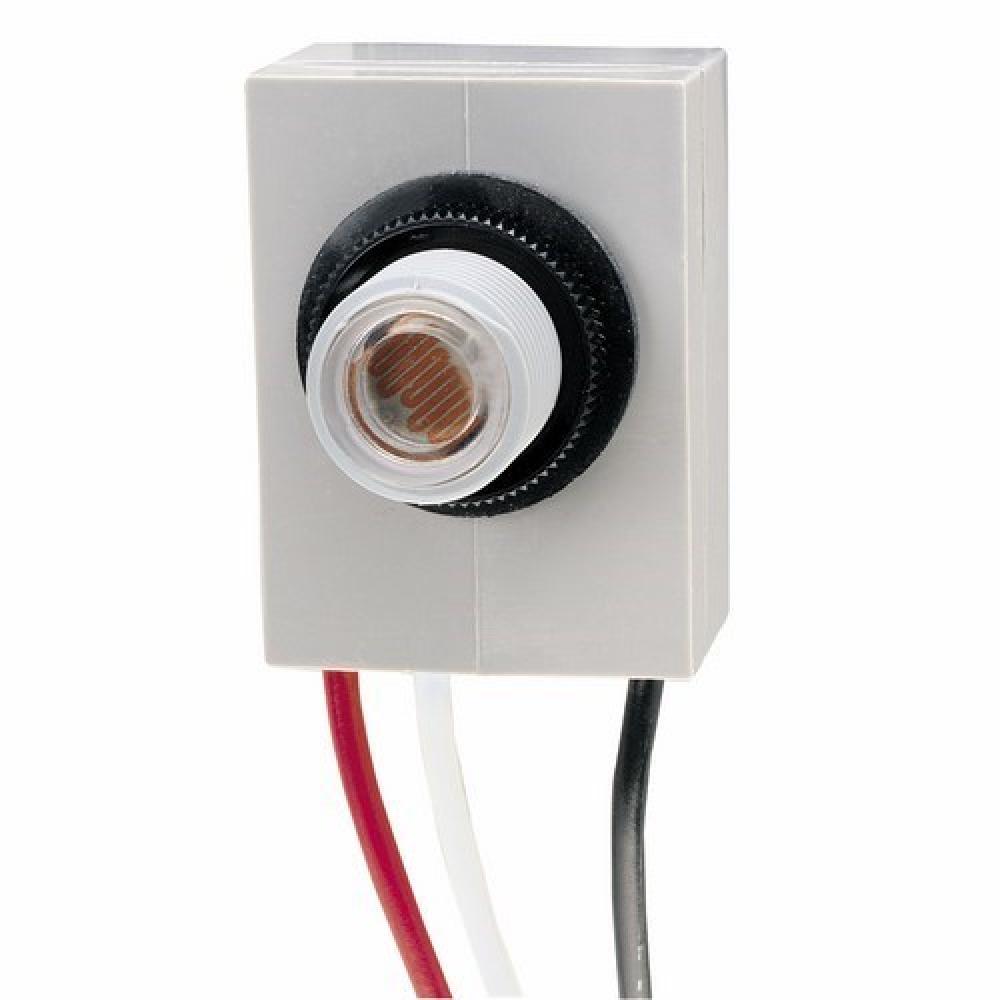

The PHOTO CONTROL THERMAL FIXED 347V 15A The K4000 Series Fixed Position Mounting Photo Controls are thermal-type photo controls that fit into a standard outlet box, post lamp, or wall pack. The photo controls provide dusk-to-dawn lighting control, along with a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photocontrols
Application:
Dusk to Dawn Lighting Control
Connection:
Color Coded Lead
Mounting:
Button Fixed Mount
Operating Temperature:
-40 to +158 DEG F -40 to +70 DEG C
Order Multiple:
12.000 EA
RoHS Compliance:
Contact Manufacturer
Sensitivity:
1-5 FC ON, 3-15 FC OFF
Sensor:
Thermal Type Photo Control (Cadmium Sulfide)
Size:
1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM
Source:
Automatic Switching
Special Features:
Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 9 IN Wire Leads
Standard:
CSA, CAS Approval, C/US Approval, Title CA 20 Listed, California Title 24 Compliant
Type:
Thermal Type Photo Cell
