Intermatic

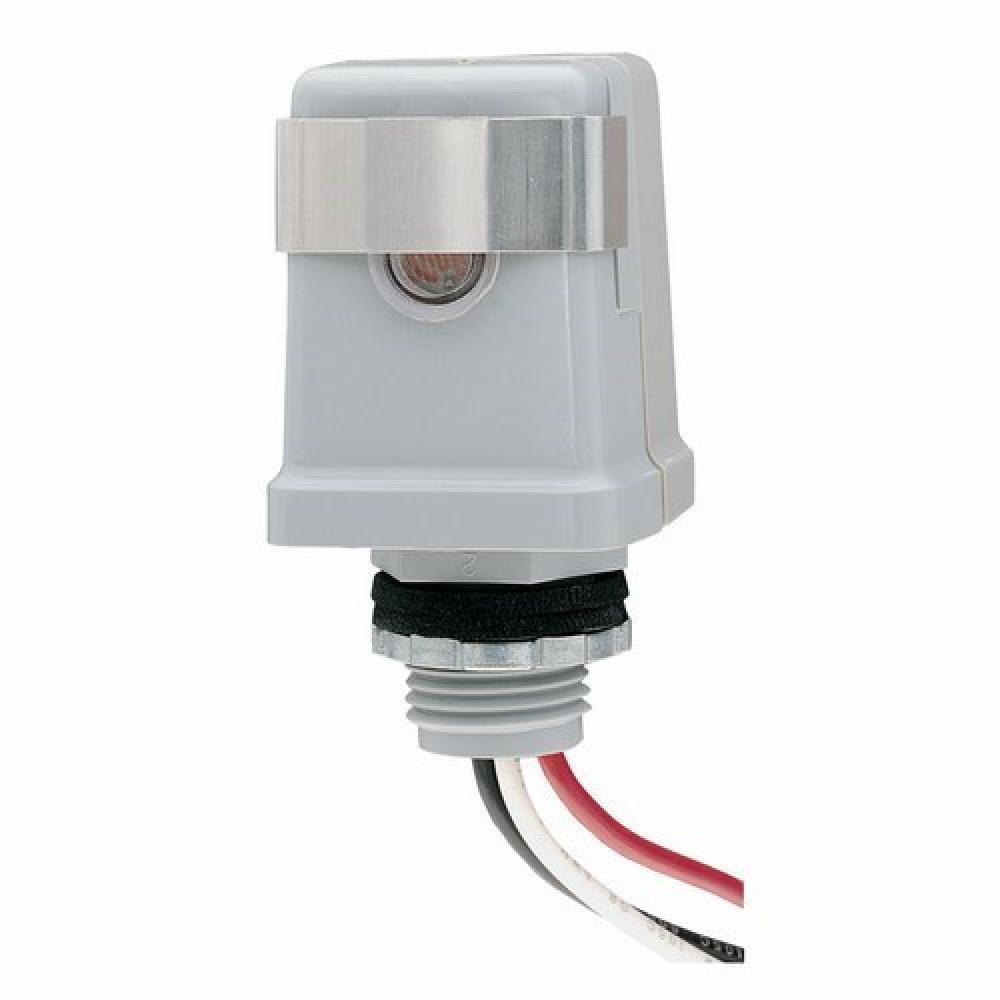

PHOTO CONTROL THERM STEM MNT 347V 15A
Part Number: K4127
UPC: 00078275091689
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Info & Guides
The PHOTO CONTROL THERM STEM MNT 347V 15A The K4100 & K4400 Series Photo Controls feature stem mounting, thermal-type, controls with single and multi-voltage models. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights, and lighting. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. These models are California Title 24 compliant.
Specifications
Details
Product Height:
5.50"
Product Width:
3.00"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photocontrols
Application:
Dusk to Dawn Lighting Control
Brand Name:
Intermatic
Connection:
Color Coded Lead
Country Of Origin:
MX
Frequency Rating:
50/60
Length:
1.8000 IN
Mounting:
Stem Mount
Operating Temperature:
-40 to +158 DEG F -40 to +70 DEG C
Order Minimum:
12.000 EA
Order Multiple:
12.000 EA
Power Consumption:
1
RoHS Compliance:
Contact Manufacturer
Sensitivity:
1-5 FC ON, 3-15 FC OFF
Sensor:
Thermal Type Photo Control (Cadmium Sulfide)
Size:
1-9/16 LENGTH X 1-9/16 WIDTH X 3 DEPTH IN, 4 LENGTH X 4 WIDTH X 7.6 DEPTH CM
Source:
Automatic Switching
Spec Sheet:
Special Features:
Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 6 IN Wire Leads, Light Level Slide Adjustment
Standard:
UL Recognized, CSA, C/UL Recognized, Title CA 20 Listed, California Title 24 Compliant
Stock Type:
Shelf Stock
Supply Voltage:
347
Type:
Thermal Type Photo Cell
UNSPSC:
39121524
Weight:
0.240 L
