NIGHTFOX Stem and Swivel Mount Electronic Photoc

Intermatic
NIGHTFOX Stem and Swivel Mount Electronic Photoc

Part Number: EK4236S
UPC: 00078275146303
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

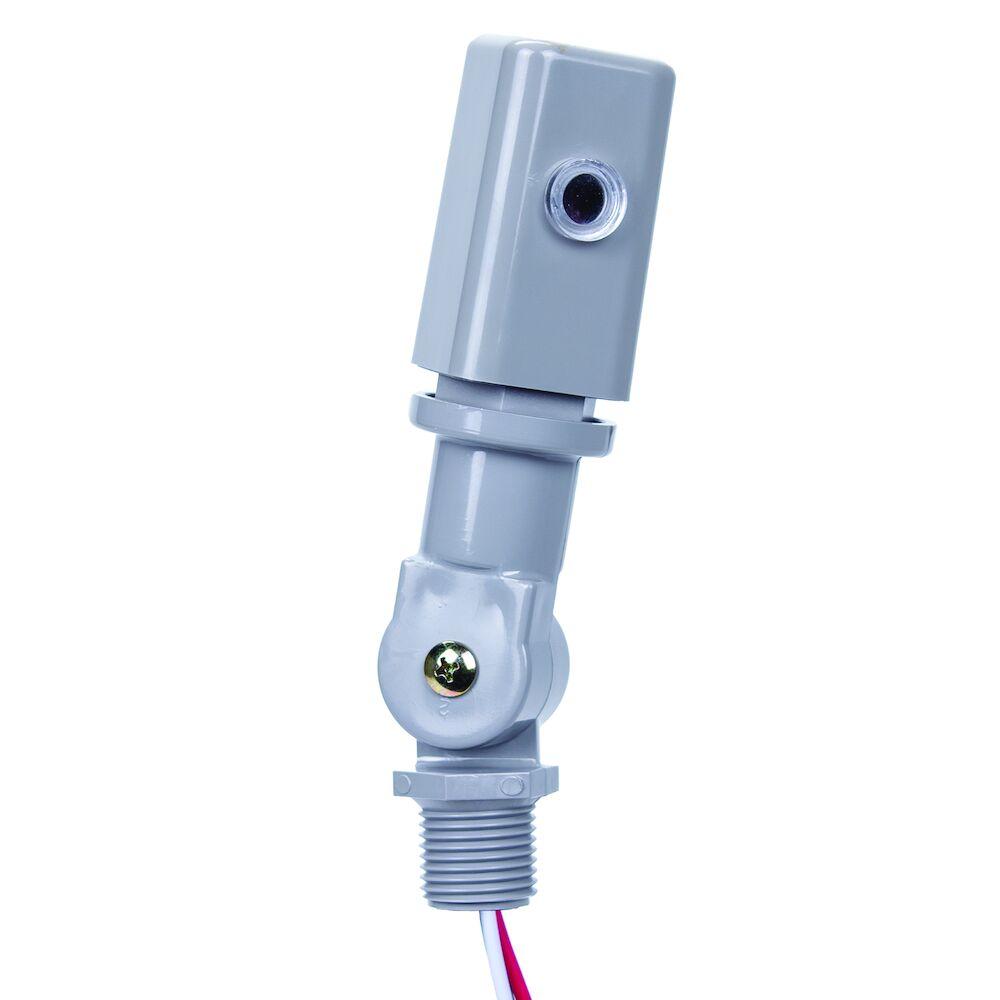

NightFox™ Stem and Swivel Mount Electronic Photocontrol, 120-277 V
Specifications
Details
Product Height:
4.88"
Product Width:
3.00"
Product Length:
1.75"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Application:
Dusk to Dawn Lighting Control
Brand Name:
Intermatic
Brochure:
Manufacturer Brochure
Connection:
Color Coded Lead
Country Of Origin:
MX
Enclosure:
NEMA 410
Frequency Rating:
50/60
Installation Link:
Installation Instructions
Mounting:
Stem and Swivel Fixed Mount
Operating Cycles:
10000
Operating Temperature:
-40 to +158 DEG F -40 to +70 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Power Consumption:
<0.5 WTT @ 277 VAC
RoHS Compliance:
Yes
Sensitivity:
1.5 FC ON, 2.25 FC OFF
Sensor:
Solid State Photo Sensor (Silicon IR Filtered)
Size:
1.3 WIDTH X 1.24 DEPTH X 2.25 HEIGHT IN, 33.02 WIDTH X 31.49 DEPTH X 57.15 HEIGHT MM
Source:
Electronic Control
Spec Sheet:
Spec Link
Special Features:
Features: Long Life, Electronic Photocell, Zero-cross technology, LED Fixtures Totaling 1650 W @ 277 VAC, Fail mode: ON, Side Lens, UV Stabilized
Standard:
ANSI C136.24 Compliant, UL Certified to US, CSA Certified to Canadian, Title CA 20 Listed
Stock Type:
Shelf Stock
Supply Voltage:
105 - 305
Timing Range:
2 - 5
Type:
Stem and Swivel Style Photocell
UNSPSC:
39121524
Weight:
.280 L
