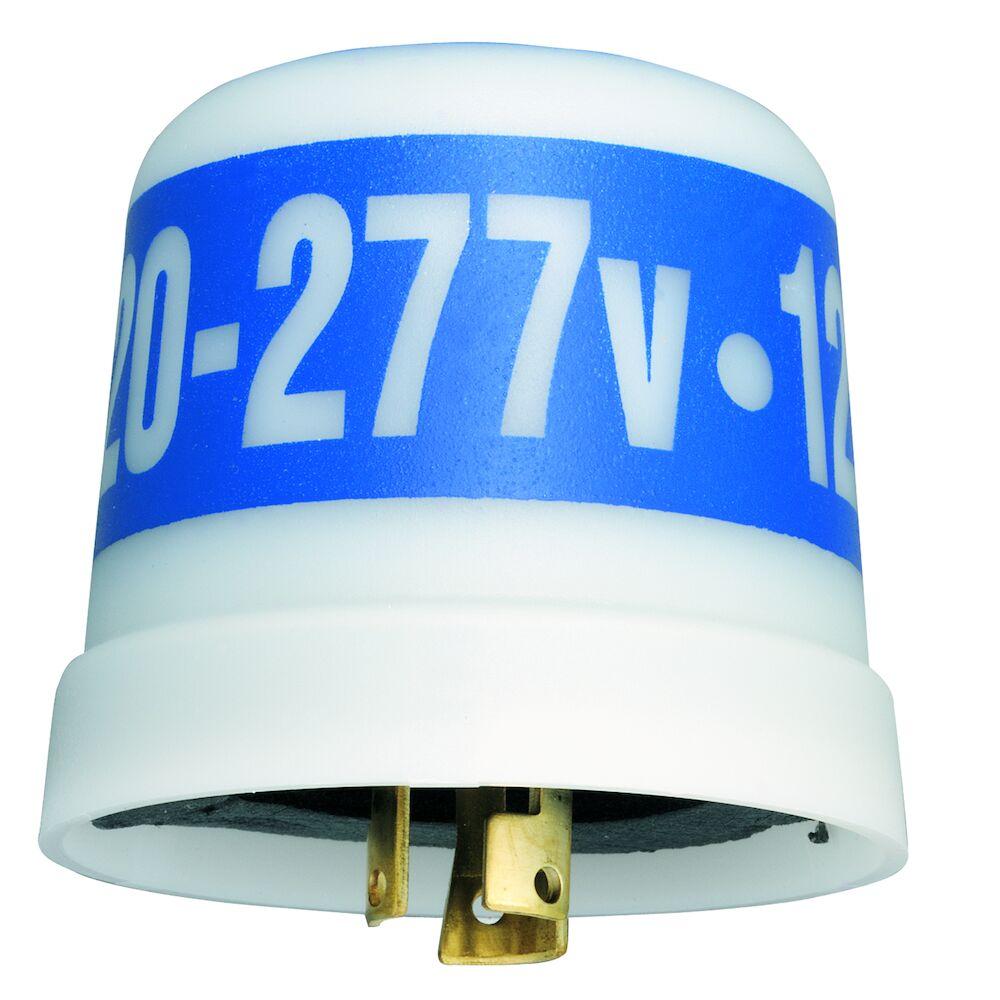

Locking Type Thermal Photocontrol, 120-277 V, Sp

Intermatic
Locking Type Thermal Photocontrol, 120-277 V, Sp

Part Number: LC4536LAC
UPC: 00078275029569
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Locking Type Thermal Photocontrol, 120-277 V, Spark Arrestor
Specifications
Details
Product Height:
3.25"
Product Width:
3.20"
Product Length:
3.20"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photocontrols
Application:
Dusk to Dawn Lighting Control
Brand Name:
Intermatic
Connection:
Lock Type
Country Of Origin:
MX
Frequency Rating:
50/60
Installation Link:
Installation Instructions
Mounting:
Twistlock Mount
Operating Temperature:
-20 to +104 DEG F, -29 to +40 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Power Consumption:
1
RoHS Compliance:
No
Sensitivity:
0.5 FC (Minimum) ON, 15 FC (Minimum) OFF
Sensor:
Thermal Type Photo Control (Cadmium Sulfide)
Size:
3 DIAMETER X 2-3/4 HEIGHT IN, 7.6 DIAMETER X 7 HEIGHT CM
Source:
Automatic Switching
Spec Sheet:
Spec Link
Special Features:
Features: Cadmium Sulfide Photocell, Polypropylene Housing with UV Protection, 2400 Volt Open Type Spark Gap Arrester
Standard:
UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant
Stock Type:
Shelf Stock
Supply Voltage:
120 - 277
Type:
TwistLock Photocell
UNSPSC:
39121524
Weight:
.270 L
