IV 15MIN S/W T/S W/HOLD SPST

Intermatic
IV 15MIN S/W T/S W/HOLD SPST

Part Number: FD15MH
UPC: 00078275185548
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Info & Guides
File

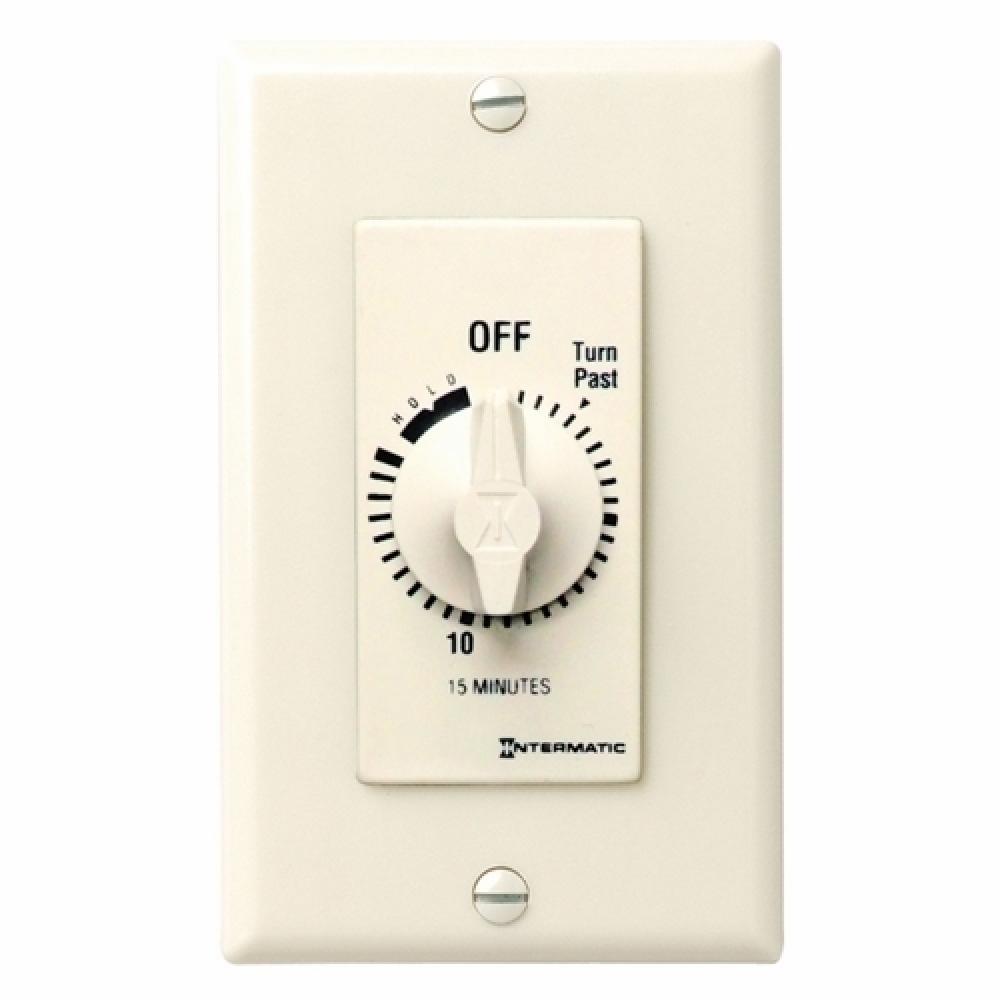

The IV 15MIN S/W T/S W/HOLD SPST   The FD Series Decorator Auto-Off Timers are designed to replace any standard wall switch - single or multi-gang. This series of energy-efficient mechanical timers do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.
Specifications
Details
Product Height:
4.63"
Product Width:
2.10"
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPST
Amperage Rating:
15
Application:
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Brand Name:
Intermatic
Connection:
Teeter Type
Contact Configuration:
1 NO
Contact Rating:
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Country Of Origin:
TN
Length:
2.9000 IN
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +104 DEG F, -40 to +40 DEG C
Order Minimum:
6.000 EA
Order Multiple:
6.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Spec Sheet:
Spec Link
Special Features:
Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Hold Feature Enables User to Override the Automatic Shut-Off Function, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compa
Standard:
cCSAus Certified, UL Listed, UL Recognized, HVACR
Stock Type:
Shelf Stock
Timer Duration:
15
Timing Range:
15
Type:
Decorator Spring Wound Auto-Off
UNSPSC:
39122208
Voltage Rating:
125 - 277
Wall Plate Color:
Ivory
Weight:
0.350 L
