Intermatic

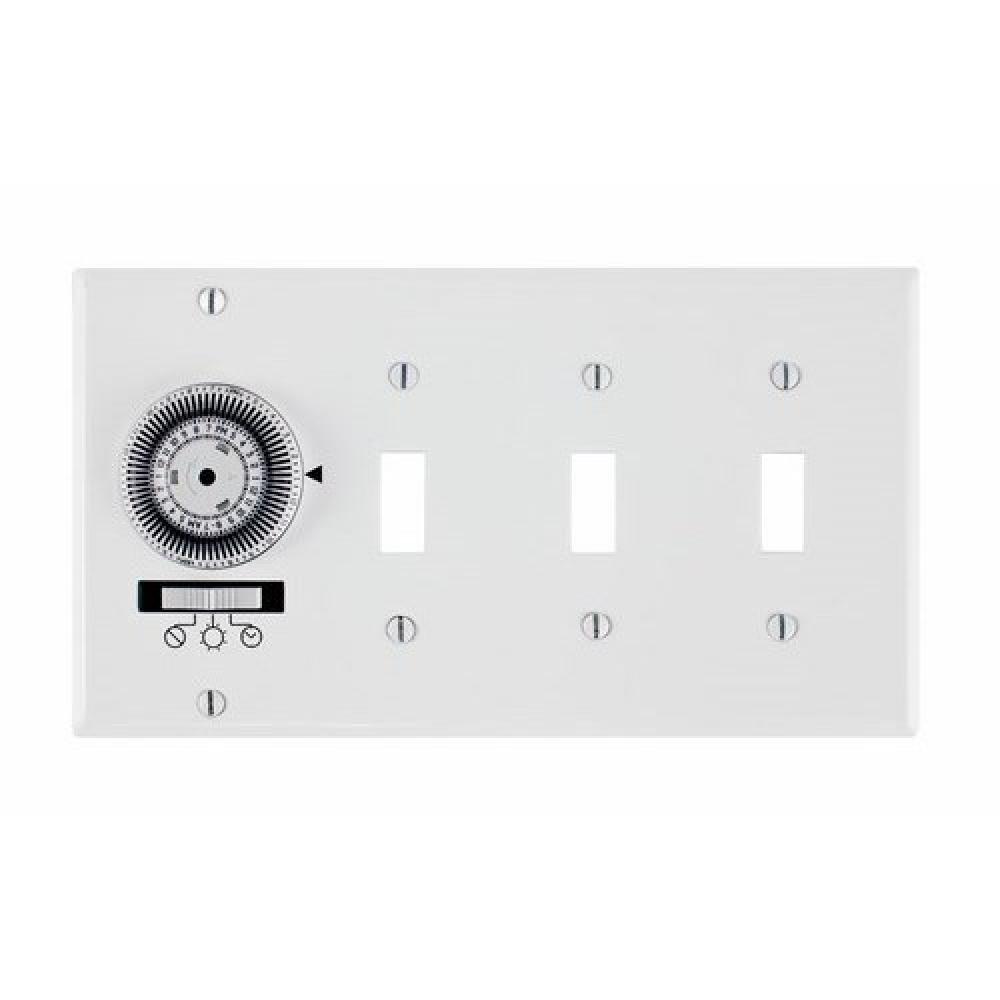

IN-WALL TIMER,4 GANG
Part Number: KM2ST-4G
UPC: 00614573043311
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
Info & Guides
The 24-Hour, Electromechanical In-Wall Timer, 20A, 120V, White, 4 Gang The KM2 Series Electromechanical In-Wall Timers replace standard wall switches (toggles) and provide automatic control of outdoor or indoor lighting, fans, pumps, office machines and other types of circuits. Captive trippers are easy to set and cannot be lost. Seventy-two trippers provide up to 36 ON/OFF events in a 24/hour period. Three-way OFF/AUTO/ON override switch provides continuous ON or OFF positions. The timers feature easy wiring and installations.
Specifications
Details
Product Height:
3.00"
Product Width:
5.25"
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPST
Amperage Rating:
20
Application:
Indoor/Outdoor, CFLs Lighting, HVACR, Fans, Pumps, Office Machines
Brand Name:
Intermatic
Connection:
Wire Lead
Contact Configuration:
1 NO
Contact Rating:
20 AMP @ 120 VAC
Country Of Origin:
MX
Environmental Conditions:
0 - 95 RH Non-Condensing
Length:
8.2500 IN
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +180 DEG F, -40 to +82 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Features: Provide Automatic Control, Captive Trippers are easy to set and cannot be Lost, Seventy-two Trippers Provide up to 36 ON/OFF Events in a 24-Hour Period, Three-Way OFF/AUTO/ON Override Switch Provides Continuous ON or OFF Positions, Captive Trippe
Standard:
cCSAus Certified #151753, cULus Listed #E10694, UL Recognized #E10694, HVACR
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24
Timing Range:
20 MIN - 24 HR
Type:
Electromechanical In-Wall
UNSPSC:
39122208
Voltage Rating:
120
Wall Plate Color:
White
Wattage:
1350
Weight:
0.635 L
