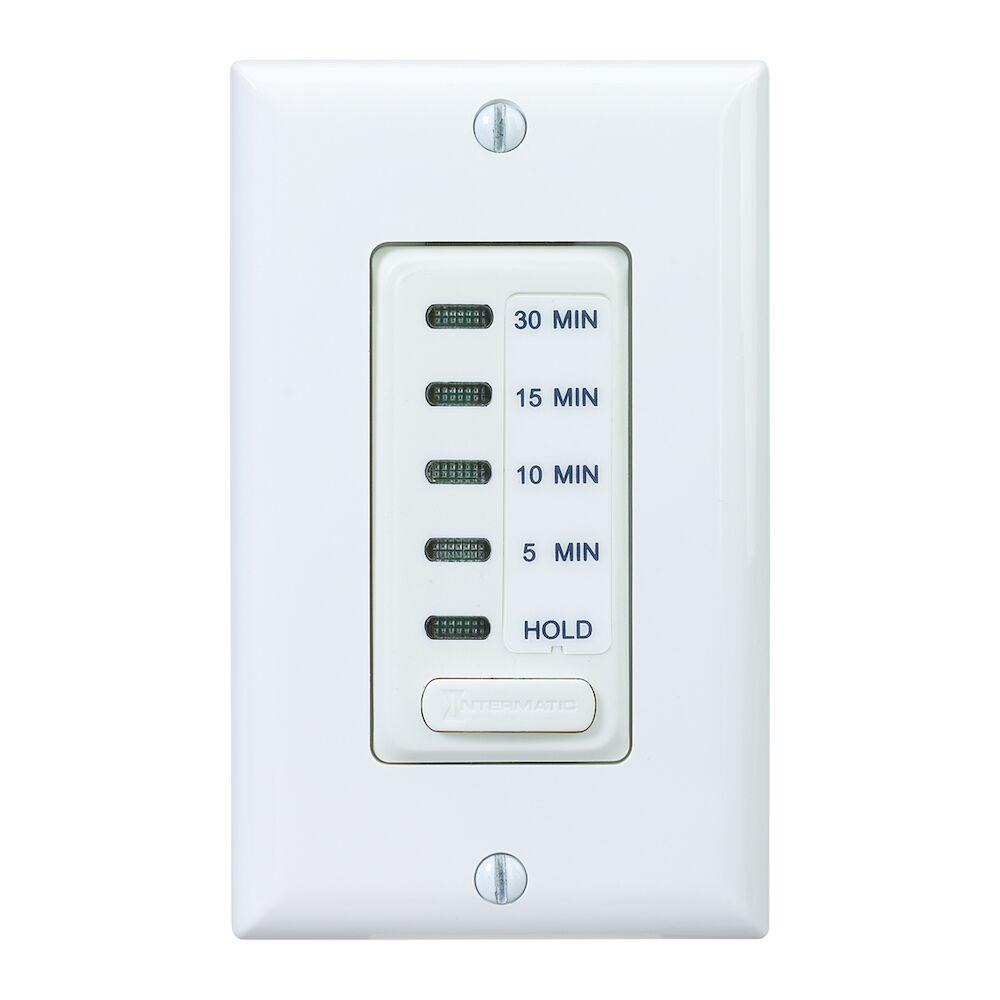

Electronic Countdown Timer, 120 VAC, 60 Hz, Pres

Intermatic
Electronic Countdown Timer, 120 VAC, 60 Hz, Pres

Part Number: EI200W
UPC: 00078275095199
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Electronic Countdown Timer, 120 VAC, 60 Hz, Preset Times 5,10,15,30 Minute, With Hold, White
Specifications
Details
Product Height:
4.88"
Product Width:
3.00"
Product Length:
2.10"
Category:
Lighting Controls
Action:
1 x SPST
Amperage Rating:
15
Application:
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Brand Name:
Intermatic
Contact Configuration:
1 NO
Contact Rating:
8.3 AMP @ 120 VAC (Tungsten-Incandescent), 8 AMP @ 120 VAC (Ballast-Magnetic), 15 AMP @ 120 VAC (Resistive-Heater)
Country Of Origin:
CN
Installation Link:
Installation Instructions
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
+32 to +122 DEG F, 0 to +50 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Spec Sheet:
Spec Link
Special Features:
Features: Silent Operation, Single Button Time Selection, Timer Contacts shall Break Current at the End of Timed Cycle, 1 Year Warranty
Standard:
cULus Listed, HVACR
Stock Type:
Shelf Stock
Timer Duration:
30
Timing Range:
5/10/15/30
Type:
Electronic Countdown Auto Shut-Off In-Wall
UNSPSC:
39122208
Voltage Rating:
120
Wall Plate Color:
White
Wattage:
1800
Weight:
.260 L
