Image may not reflect selected features
No Image
Available
Available
Intermatic

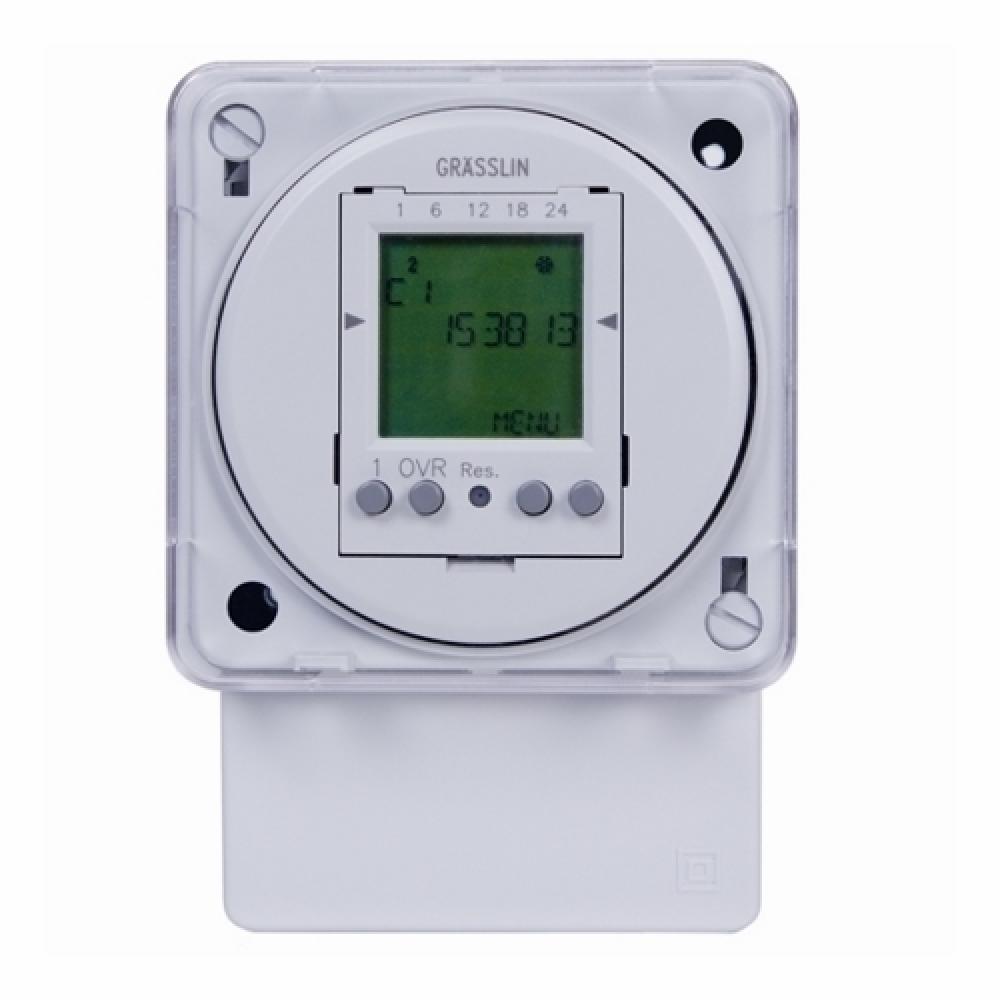

DGTL TMR,50 PRGM,240V,SFCE MNT
Part Number: FM1D50A-240
UPC: 00078275121539
Call for Price
- Manufacturer availability unknown.
Quantity:
Product Overview
The Electronic 24-Hour/7-Day Timer Module, Surface/DIN Rail Mount, 16A, 120V, 50/60Hz One Channel Electronic Time Switches are compact 24-Hour/7-Day modules with heavy-duty relay contacts for switching low or line voltage loads. The time switches are applicable for time-of-day control of pumps, fans, heaters, HVAC control circuits, lighting, machinery, and many other types of commercial, industrial, and agricultural equipment.
Specifications
Details
Product Height:
3.25"
Product Width:
3.30"
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPDT
Application:
HVACR, Pumps, Lighting, Industrial, Commercial, Fans, Heaters, Machinery
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Country Of Origin:
CN
Length:
4.8000 IN
Mounting:
Surface/DIN Rail Mount
Number Of Poles:
1
Operating Temperature:
-13 to +131 DEG F, -25 to +55 DEG C
Order Minimum:
12.000 EA
Order Multiple:
12.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
4 HEIGHT X 2.83 WIDTH X 2.06 DEPTH IN, 102.5 HEIGHT X 72 WIDTH X 52 DEPTH MM
Spec Sheet:
Special Features:
Features: 50 Setpoint Programs, 2 Preset Adjustable Block Programs, Easy-to-Follow Menu Driven Programming, Manual Override with Status Indication, Battery Backup, Auto Daylight Savings Time Feature, Clear Dust-Cover, 1 Year Warranty
Standard:
cULus Recognized E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24 HR/7 DAYS
Timing Range:
1 MIN - 24 HR/7 DAYS
Type:
One Channel Electronic
UNSPSC:
39122208
Voltage Rating:
240
Wattage:
1000
Weight:
0.500 L
